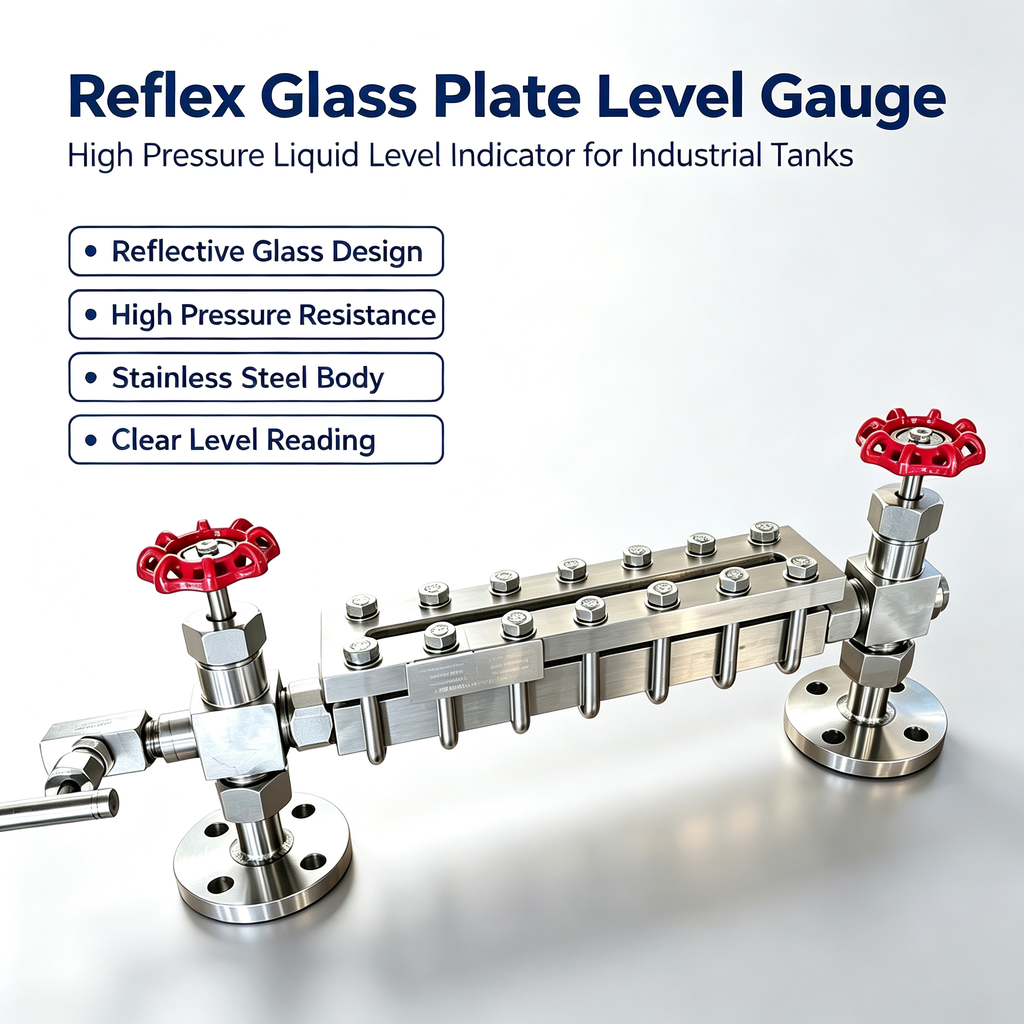

Reflex Glass Plate Level Gauge
Accuracy：1mm
material：SS
C-C：235-2590mm
material：SS304 SS316
Glass Material：Borosilicate
Working temperature：-40-450℃
Working pressure：≤160bar
Application：Liquid Tank Detection Appliance
Process connection：Flange
Product descriptions from the supplier
1.Report abuse
2.Highlights at a glance
3.High Pressure & Temperature Resistant Construction
4.Clear, Accurate Level Readings via Reflex TechnologyClear, Accurate Level Readings via Reflex Technology
5.Integrated Flanged Isolation Valves for Safe Operation
6.Robust, Leak-Proof Sealing Design
7.Customizable for Specific Industrial Applications
reflect glass Plate Level Gauge working principle is based on the light refraction and reflection laws.
Reflex glass Plate Level Gauge use glasses having the face fitted towards the chamber shaped to have prismatic grooves with section angle of 90°. When in operation, the chamber is filled with liquid in the lower zone and gases or vapors in the upper zone; the liquid level is distinguished by different brightness of the glass in the liquid and in the gas/vapor zone. The reflex level gauges do not need a specific illumination: the day environmental light is enough. Only during the night an artificial light must be provided.
Applications
Reflex glass Plate Level Gauge can be used in most of the cases and offer great advantages in terms of: low initial cost, low operating cost, easy level reading.
Features:
1. They do not need electrical power to operate. This can be a great advantage in the case of a power outage.
2. Simple to install – no calibration is necessary.
3. Can be used as a reference to check, or calibrate, other level technologies.
4. Pressure rating from vacuum to 4Mpa.
5. Temperature rating from -20℃ to 450℃
6. Not affected by the chemical or electrical properties of the process liquid.
7. Specific gravity, dielectric, conductivity, surface turbulence, vapor, foam, etc. no longer needs to be considered.
The classification and scope of use of Reflex glass Plate Level Gauge are as follows:
1. Heat-tracing reflex glass plate level gauge: mainly used for the occasions where the measured medium needs heat preservation;
2. Frost-proof glass plate level gauge: mainly used for occasions where the operating temperature of the medium under test is -196~0℃ and the glass is prone to frosting;
3.reflex Glass plate level gauge without blind area: mainly used in situations where continuous observation is required and blind areas are not allowed in the visual range;
4. Two-color glass plate level gauge: mainly used for occasions where the medium is colorless and transparent liquid and liquid level is not easily observed;
5.Uv – proof glass plate level gauge:mainly used for the occasions where the measured medium is afraid of ultraviolet light;
6. Wide liquid chamber glass plate level gauge: mainly used for occasions where the viscosity of the measured medium is relatively large or the volume of the instrument is relatively large;
7. Illuminating glass plate level gauge: mainly used for night observation.
| Model | TBS-F | TBS-A | TBS-HR | TBS-HT | RFL-40C |
| Type | Reflex type | Transparent type | High pressure reflex type | High pressure Transparent type | 90 degree Quick open/close type |
| C-C(mm) | 300-3600 | 285-2590 | |||
| Visible Length(mm) | 95-3360 | 141-2433 | |||
| Level Gauge Material | CS、SS304、SS316L、Ti、etc | Cast steel | |||
| Glass Material | Borosilicate; Alumina-silicate | ||||
| Gasket Type | Graphite composite gasket; non-Asbestos gasket; Mica seal components | ||||
| Working temperature℃ | ≤450℃ | ||||
| Working pressureBar | 40 (Groove glass)100 (Plate glass) | 100 (Plate glass) | 40 (Groove glass)160 (Plate glass) | 160 (Plate glass) | 40 (Groove glass) |
