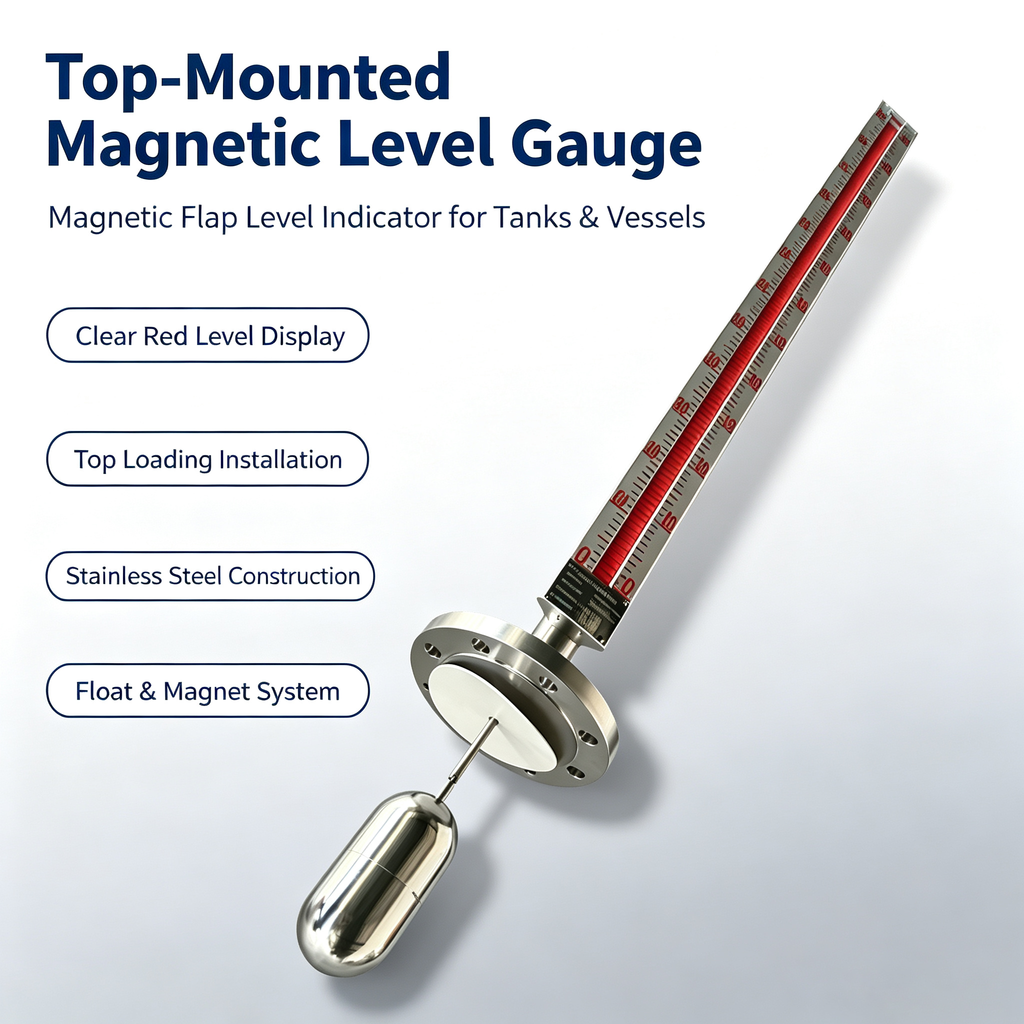

Xukang Top Mounted Magnetic Flap Level Gauge
Type:Magnetic Flap Level Gauge
material:SS
warranty:1 year
customized support:OEM
brand name:Xukang
Smart App:None
place of origin:Hebei, China
Measuring Range:200mm-1000mm or greater lengths on request
Rated Pressure:<10.0 Mpa 1.6-4.0Mpa other can be custom
Working temperature:450℃ (Max.)
Power supply:24VDC
Output signal:4-20mA.DC,pulse,RS485
Type:Magnetic
Medium:hot wate/oil/liquid
Switch:NC/NC/SPDT/or holding signal

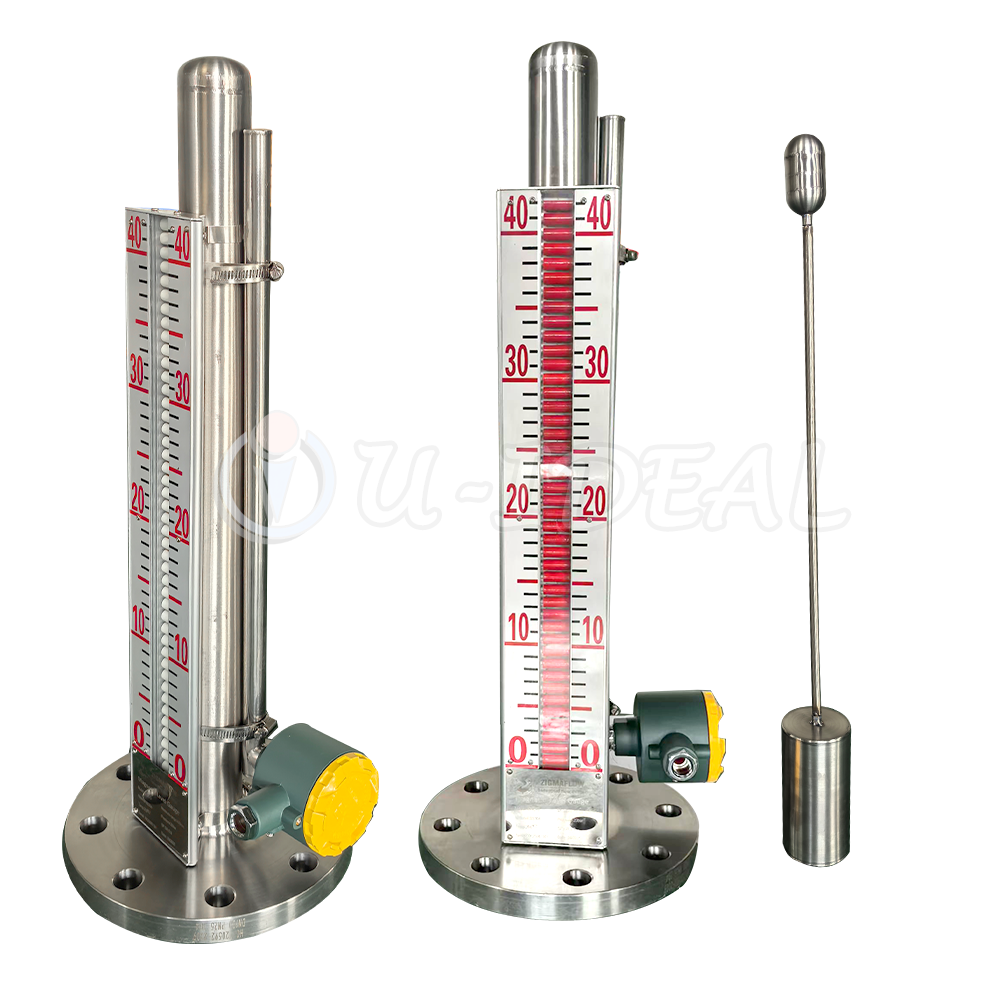

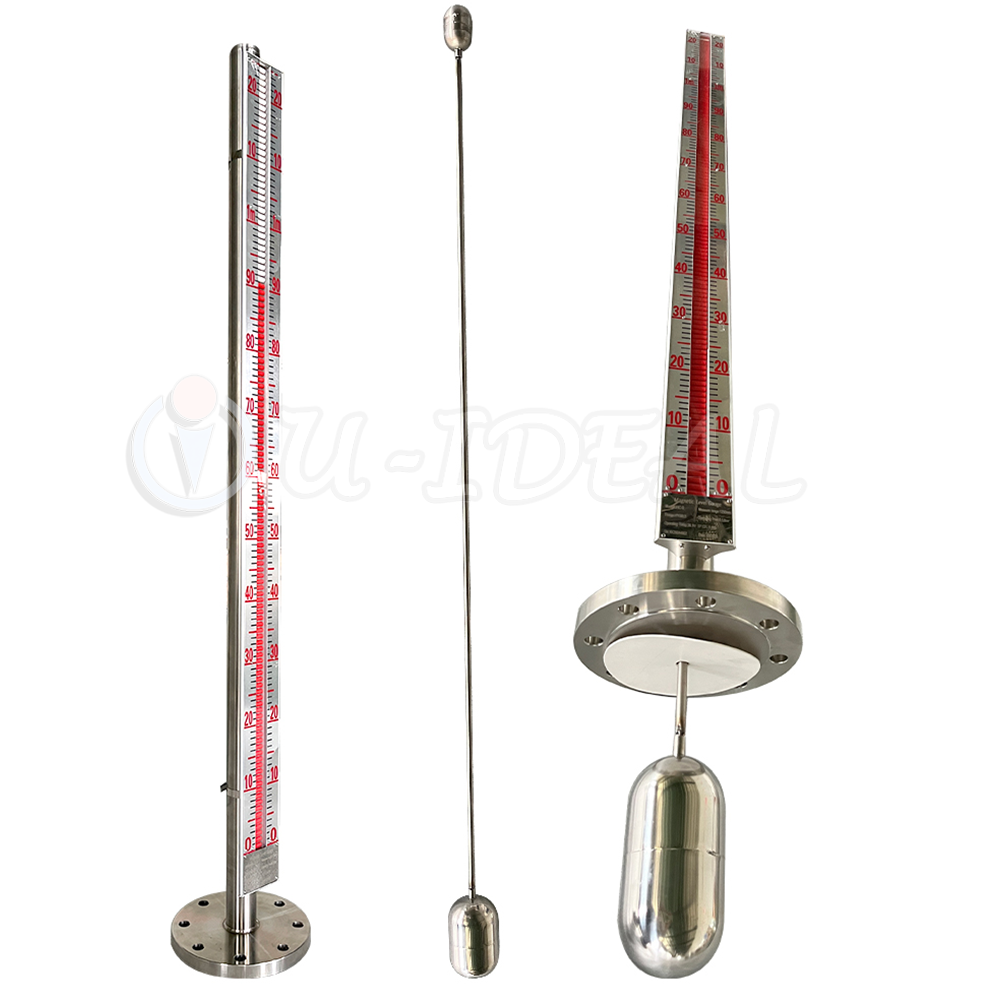

Top Mounted Magnetic Flap Level Gauge is mounted on top of the tank by a suitable process connection (preferably DN150 mm flange). A float designed for liquid to be gauges is guided within a stilling well that rest on the process flange. The float, connected to a stem that a magnet at the upper end moving in a chamber. The float along with the stem and magnet moves up and down with the changing in liquid levels in the vessel. On the dry side of the chamber is the Magnetic Follower Display assembly comprising of a Red & Black PP magnetic capsule housed in a glass tube filled with water. As the float tracks the liquid level the magnet inside the float magnetically couples the Red & Black PP capsule and the capsule will remain magnetically coupled and the level can be read off directly.
Xukang Top Mounted Magnetic Flap Level Gauge Technical Features:
1. Simple and robust design.
2. Pressure and gas proof separation of chamber and display.
3. Measuring and indication of the level of aggressive, combustible, toxic, hot agitated and contaminated.
4. Magnetic Follower display without external power.
5. Available for applications in all areas of industry through use of highly corrosion resistant materials.
6. Designs for a Pressure range from full vacuum to 300 bar.
7. Designs for a Temperature range from 100C to 450℃.
8. Food industry design.
9. Interface measurement.
| Float Cage Material | SS304, SS316, PTFE, PP, PVC, PVDF |
| Max. Centre to Centre Distance | 6000 mm, greater lengths on request |
| Connecting Flanges | According to DIN or ANSI B16.5 |
| Rated Pressure | <10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDF Higher pressure rating can also be provided |
| Temperature of Liquid | 450ºC (Max.) for SS, 80ºC (Max.) for PVDF 60ºC (Max.) for PVC, 50ºC (Max.) for PP |
| Specific Gravity | Min. 0.40g/cm³ |
| Scale | Graduated in cm, Aluminium or SS304 |
| Power supply | 24V DC |
| Signal | 0-10Ma,4~20mA.DC,pulse,RS485,HART,0-5V,0-10V |
| Switch type | NO、NC、SPDT |
| Measuring Accuracy | ±10mm |
| Explosion-proof mark | Exd II BT6 |
| Protection Grade | IP65/IP67 |
Application Scenarios of Xukang Top Mounted Magnetic Flap Level Gauge
Top Mounted Magnetic Flap Level Gauge is installed vertically on the top opening of sealed tanks, without side openings on the vessel wall. It relies on magnetic coupling to display liquid level, suitable for the following working conditions:
- Vertical closed storage tanks without side flangesFor tanks whose side walls cannot open holes due to structural strength, anti-leakage or anti-corrosion requirements, such as underground storage tanks, vertical cylindrical chemical storage tanks, and vertical plastic lining tanks. Only one top mounting hole is needed for installation, which will not damage the side wall anti-corrosion layer.
- High-viscosity, easy-to-crystallize and easy-to-scale mediaSince the measuring float moves up and down from the top without side tube dead zones, it avoids medium accumulation and blockage in side connecting pipes. It is widely used for measuring crude oil, resin, syrup, chemical crystal liquid and other viscous materials.
- High-pressure, flammable, toxic and highly corrosive dangerous mediaThe whole measuring system is fully sealed, with no leakage risk. It fits oil storage tanks, gasoline/diesel tanks, chemical reagent tanks containing acid and alkali, and toxic chemical containers. It can be matched with explosion-proof transmitters for flammable and explosive working environments.
- High temperature working conditionsAfter selecting high-temperature resistant floats and magnetic components, it can be applied to hot water tanks, thermal oil storage tanks and high-temperature intermediate storage tanks in chemical plants.
- Food, pharmaceutical and sanitary-grade containersSanitary top-mounted magnetic level gauges with polished stainless steel bodies are used in fermentation tanks, liquid medicine storage tanks, beverage mixing tanks and edible oil tanks. No side dead angles reduce medium residue, meeting cleaning and hygiene standards.
- Small-diameter vertical tanks and reaction kettlesSmall vertical buffer tanks, laboratory reaction kettles and small intermediate tanks with narrow tank bodies cannot install side-mounted level gauges. Top-mounted type saves installation space and achieves full-range level measurement.
- Outdoor and buried tank monitoringBuried fuel tanks, outdoor vertical water tanks and rainwater collecting tanks adopt top-mounted structure, which effectively reduces the risk of side wall corrosion and medium leakage caused by underground soaking or weather erosion.
- Remote signal transmission matchingEquipped with magnetic reed transmitters, it can output 4-20mA standard signals to DCS control room, realizing remote real-time liquid level monitoring for unattended tank areas.
