Measuring range: 0-6m;
Accuracy: liquid level control: ±4mm, boundary control: ±6mm;
Control points: 1-4 groups (optional);
Contact capacity: 220VAC 2A (customizable);
Working pressure: ≤25Mpa (1500LB);
Operating temperature: -40 ~ 300℃;
Ambient temperature: -40 ~ 80℃;
Liquid material: stainless steel 304/316, other alloys;
Medium density: liquid level control: ρ≥0.5g/cm³, ρ1-ρ2≥0.25g/cm³ boundary control;
Viscosity of medium: ≤1St(10-4m2/S)
Explosion-proof type: flameproof type Exd CT4 ~ T6;
Protection grade: IP65 (can be customized);
Installation method: overhead installation, side installation;
Fixed mode: welding, flange.

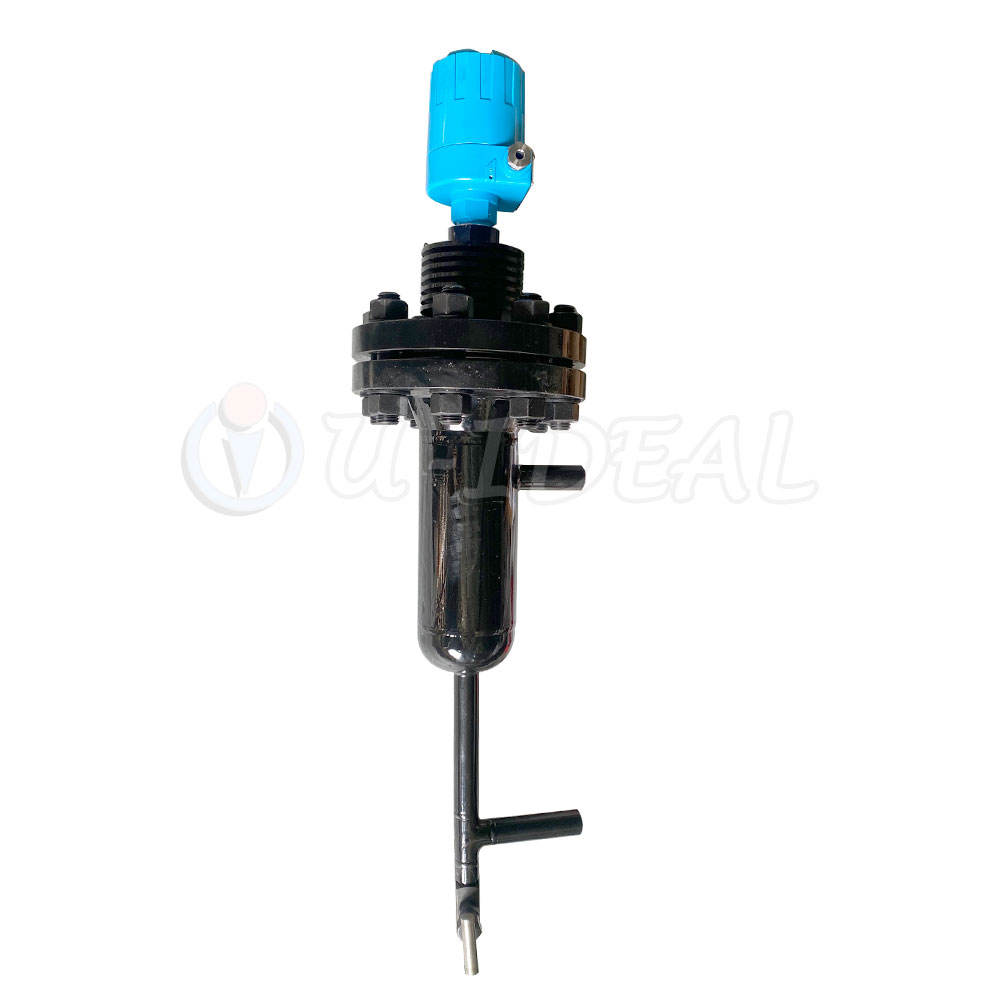

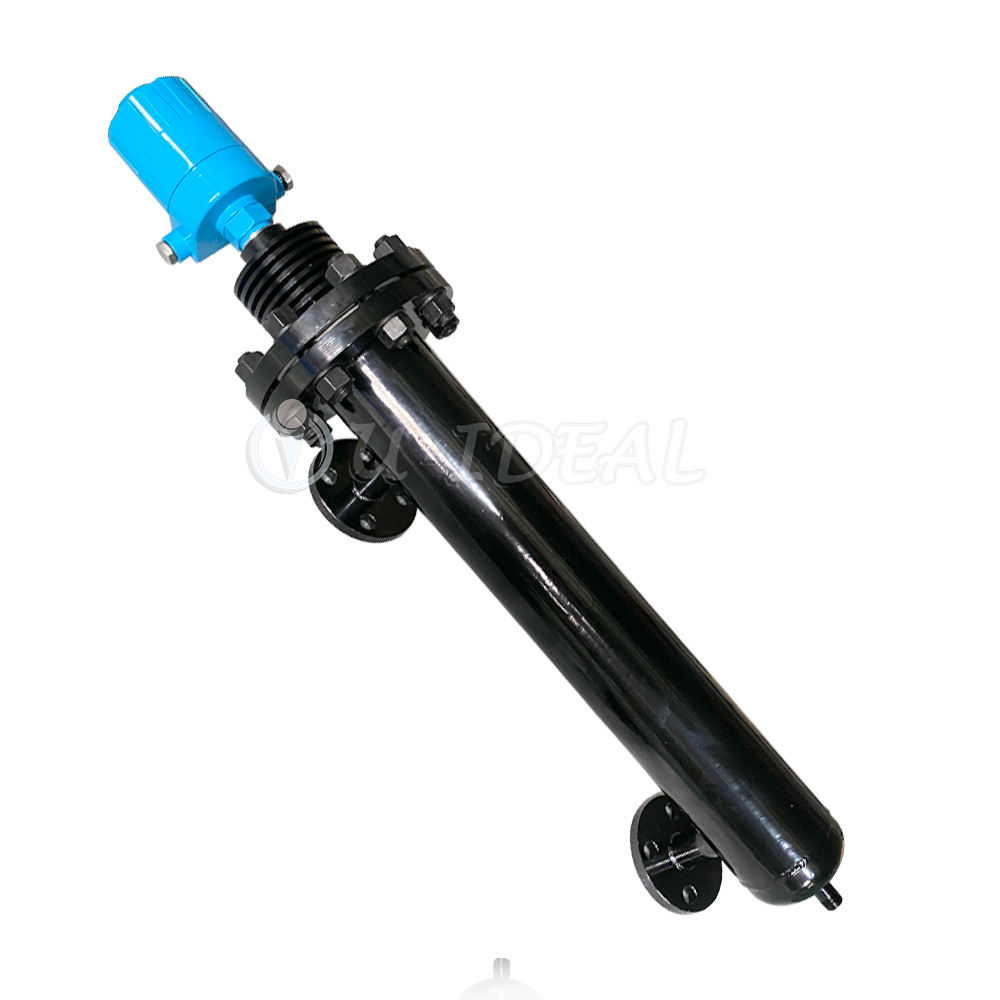

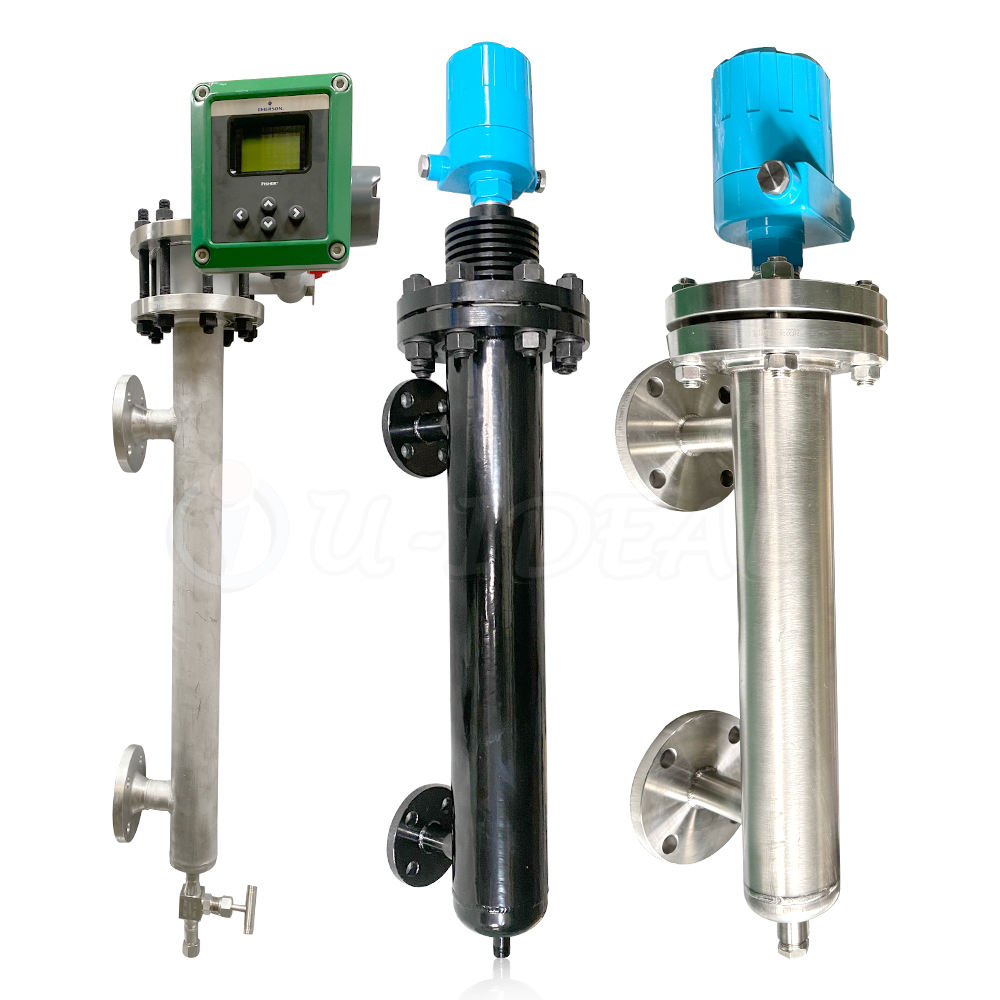

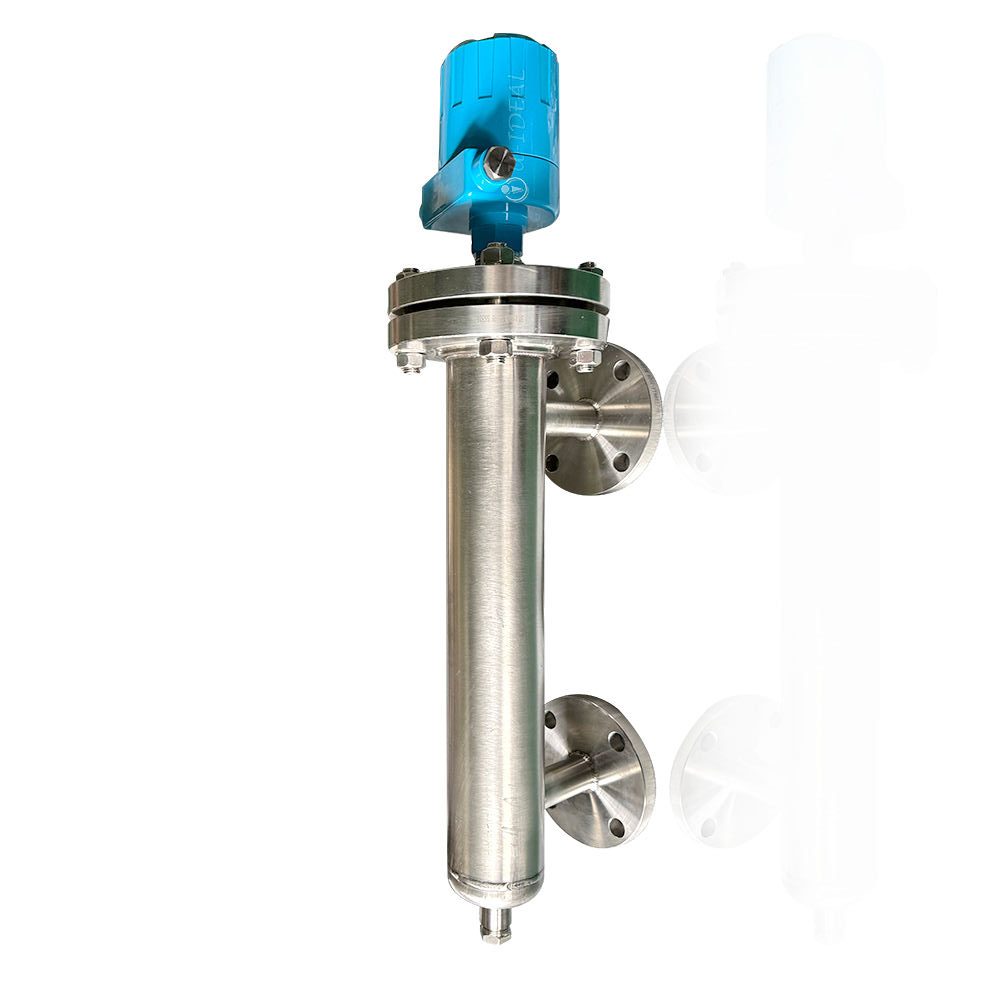

UQK-T Float level switch Float level controlle

Explosion-Proof Magnetic Float Switch for Liquid Level Control & Alarm in Oil, Chemical, Pharmaceutical, Water Treatment & Power Industries

Highlights at a glance

1. Optimized Listing Title

UQK-T Float Level Switch Float Level Controller - Magnetic Float Switch for Liquid Level Control and Alarm (0-6 m Range, Working Pressure up to 25 MPa / 1500 LB, -40°C to +300°C, Exd Flameproof, SS304/SS316)

Alternative Listing Titles

1. UQK-T Float Level Switch | Magnetic Coupling Level Controller with 1-4 Control Points for Oil, Chemical and Water Treatment Tanks
2. Explosion-Proof UQK-T Float Level Switch - High Pressure / High Temperature Magnetic Liquid Level Controller for Industrial Tank Level Alarm

2. Product Overview (Short Description)

The UQK-T float level switch is a magnetic coupling liquid level controller engineered for reliable level control and alarm in industrial tanks and vessels. As the liquid level rises or falls, the magnetic mechanism drives the switch contacts to open or close, delivering precise level control with 1-4 adjustable control points. Rated for working pressures up to 25 MPa (1500 LB) and operating temperatures from -40°C to +300°C, the UQK-T performs reliably in oil, chemical, pharmaceutical, water treatment and power industries. Its simple structure, easy installation and minimal maintenance make it a trusted, cost-effective solution for global industrial customers.

3. Key Features & Benefits

• Magnetic coupling design - no mechanical seal or moving parts exposed to the medium, ensuring long service life and high reliability
• Withstands working pressures up to 25 MPa (1500 LB) for high-pressure applications
• Wide operating temperature range from -40°C to +300°C
• Outputs 2-4 groups of switching signals simultaneously (at least one normally open and one normally closed)
• 1-4 adjustable control points (optional) to meet multi-level control and alarm requirements
• High control accuracy: ±4 mm for liquid level control, ±6 mm for boundary (interface) control
• Flameproof explosion-proof type Exd CT4 ~ T6, suitable for hazardous areas
• IP65 protection rating, customizable on request
• Wetted parts in SS304 / SS316 stainless steel or other alloys for medium compatibility
• Top (overhead) or side installation with welding or flange fixing
• Simple structure, convenient installation and low maintenance
• Contact capacity 220 VAC 2 A, customizable

4. Quick Details (Specification Summary)

Item	Specification
Model Number	UQK-T
Product Type	Float Level Switch / Float Level Controller (Buoy Liquid Level Switch)
Brand Name	Hebei Xukang / U-IDEAL
Measuring Range	0 - 6 m
Control Accuracy	Liquid level control ± 4 mm; boundary control ± 6 mm
Control Points	1-4 groups (optional)
Contact Capacity	220 VAC 2 A (customizable)
Working Pressure	≤ 25 MPa (1500 LB)
Operating Temperature	-40°C ~ +300°C
Ambient Temperature	-40°C ~ +80°C
Wetted Material	SS304 / SS316 / Other alloys
Medium Density	Liquid level control ρ ≥ 0.5 g/cm³; boundary control ρ1-ρ2 ≥ 0.25 g/cm³
Medium Viscosity	≤ 1 St (10⁻⁴ m²/s)
Explosion-Proof Type	Flameproof Exd CT4 ~ T6
Protection Grade	IP65 (customizable)
Installation Method	Overhead (top) / Side installation
Fixing Mode	Welding / Flange



5. Detailed Product Description

Working Principle

The UQK-T float level switch is a liquid level instrument designed and manufactured on the magnetic coupling principle. When the liquid level in the container fluctuates, the magnetic force mechanism drives the magnetic control switch or bias magnetic steel, causing the switch contacts to open or close. When the liquid level falls, the magnetic body moves down and the magnetic control switch returns to its original state or reaches a new balanced position under gravity, again switching the contacts on or off. In this way, the UQK-T realizes reliable liquid level control and alarm.

Design & Construction

Built with a sealed magnetic coupling mechanism, the UQK-T keeps all switching elements isolated from the process medium, which effectively eliminates leakage risk and minimizes wear. The flameproof enclosure (Exd CT4 ~ T6) and IP65 protection rating allow safe and stable operation in hazardous and demanding industrial environments, while the all-stainless-steel wetted construction ensures excellent corrosion resistance.

Reliability in Harsh Conditions

The UQK-T operates stably and reliably at working pressures up to 25 MPa (1500 LB) and temperatures from -40°C to +300°C. With 1-4 optional control points and 2-4 simultaneous switching outputs, it delivers accurate and repeatable level control, making it an ideal replacement and upgrade for traditional mechanical level switches.

6. Applications

• Oil and petrochemical storage tanks and process vessels
• Chemical industry reactors, mixing tanks and dosing systems
• Pharmaceutical production and liquid storage tanks
• Water treatment basins, reservoirs and pumping stations
• Power plant auxiliary liquid level control systems
• General industrial liquid level control, alarm and interlock applications

8. Options & Customization

• Control points: 1-4 groups optional
• Contact capacity: 220 VAC 2 A standard, customizable on request
• Protection grade: IP65 standard, higher ratings available
• Wetted materials: SS304, SS316 or other alloys per medium compatibility
• Installation: overhead or side; fixing by welding or flange
• Explosion-proof configuration: flameproof Exd CT4 ~ T6

9. How to Order

To ensure the correct configuration, please specify the following information in your inquiry:

• Model: UQK-T
• Measuring range and installation position (top / side)
• Medium type, density and viscosity
• Working temperature and pressure conditions
• Number of control points required (1-4 groups)
• Process connection and fixing mode (welding / flange)
• Explosion-proof requirement and protection grade

10. Quality Assurance & Service

• ISO-certified production and quality management system
• Strict factory inspection and testing before shipment
• One-year warranty
• Rich experience in global export markets
• Responsive technical consultation and after-sales support

11. Packaging & Shipping

• Export-standard carton and wooden case packaging for safe transit
• Flexible shipping options: sea freight, air freight, or express courier to door
• On-time delivery with complete export documentation

12. FAQ

Q1: How does the UQK-T float level switch work?

A1: The UQK-T works on the magnetic coupling principle. When the liquid level rises or falls, the magnetic mechanism drives the switch contacts to open or close, providing reliable liquid level control and alarm without any mechanical seal or power supply to the sensor head.

Q2: Can it be used in explosive atmospheres?

A2: Yes. The flameproof explosion-proof type Exd CT4 ~ T6 is available, making the UQK-T suitable for hazardous areas in oil, chemical and other industries.

Q3: How many control points can be configured?

A3: The UQK-T supports 1-4 groups of control points (optional) and can output 2-4 groups of switching signals simultaneously, with at least one group normally open and one group normally closed.

Q4: Can it withstand high pressure and high temperature?

A4: Yes. The UQK-T works stably at pressures up to 25 MPa (1500 LB) and temperatures from -40°C to +300°C, covering most demanding industrial conditions.

Q5: What materials are available for the wetted parts?

A5: The wetted parts are available in stainless steel 304/316 or other alloys. Please provide your medium details so we can recommend the most suitable material.

13. Keywords

float level switch, float level controller, magnetic float switch, liquid level switch, UQK-T float switch, buoy level switch, level switch, level controller, tank level switch, oil tank float switch, explosion proof level switch, flameproof level switch, high pressure level switch, liquid level alarm switch, level control switch, water tank level switch, liquid level control instrument, level sensor.

Company introduction

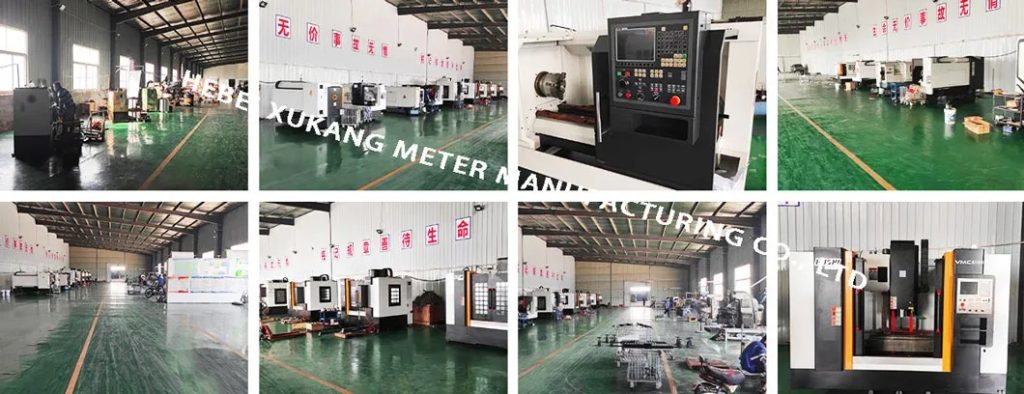

Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines. Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product.
