Magnetic float level switch for water tank
Specification：0~10m
Switch Type：Float Level Switch
Level Control Point：High Level, High High Level, Low Level, Low Low
Point Alarm：Level Alarm, Warning
Installation：Vertical Mounting
Connection：Flange or Thread Connection
Output Signal：Spst, No, Nc
Working Temperature：-20~130° C
Float Material：SUS304/SUS316L, Titanium
Contact Capacity：AC220V/1A; DC24V/0.5A
Trademark：U-ideal
Origin：Tianjin, China
HS Code：90261000
Production Capacity：3000PCS/Month

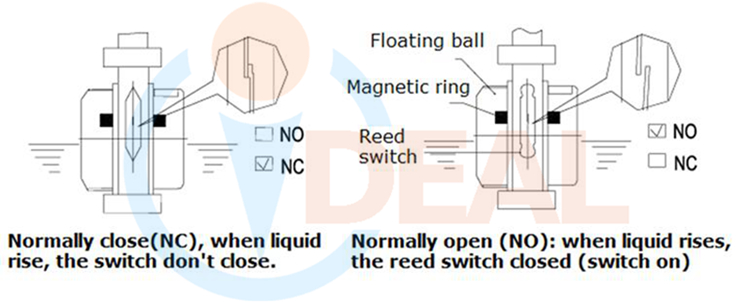

Magnetic float level switch for water tank are continuous level sensors featuring a magnetic float that rises and falls as liquid levels change. The movement of the float creates a magnetic field that actuates a hermetically sealed reed switch located in the stem of the level sensor, triggering the switch to open or close.
Different variations of float switches are used for commercial and industrial applications involving water, oil, chemicals, and other liquid materials. There are vertical mount and side mount options, and the choice of a stem made from either hard plastic or non-magnetic metal such as stainless steel.
We manufacture several varieties of float switches including programmable level sensors, miniature float switches, suction pipe sensors, and bulk material switches. All our products feature a robust housing design and are offered in various configurations to meet your unique needs.
| Insertion rod length | 200-8000mm |
| Material | Plastic material PP, PVDF (for corrosive fluid); SUS 304/316L material is used for high temperature or high pressure containers,side or top mounted |
| Fluid Density | >=0.45g/cm³ |
| Switch point number | 1, 2, 3 or 4nos switches |
| Contact Way | SPDT, normally open (NO), normally close (NC) |
| Contact rate | DC24V 2A, AC220V 2A |
| Action error | +/-3mm |
| Release error | 8mm |
| Process temperature | ＜180 C degree |
| Process pressure | ＜2.5MPa or on order |
| Connection | Threaded or Flange GB, ANSI, JIS standard, DN50 PN16 or other |
