HEBEI XUKANG METER MANUFACTURING CO., LTD

we are a strong manufacture and main produce various level gauge and level switch (hight temperature and pressure ).It can be customized according to your requirements. If you are interested, please contact us at any time

Specification

Applications

Side Liquid Float Switch for Tank Control Switch are mainly applied in fields such as liquid level control in ‌ storage tanks ‌, ‌ municipal water treatment ‌, ‌ industrial automation ‌, and ‌ household equipment ‌. ‌

In scenarios such as chemical engineering and petroleum, side-mounted float switches are often used for liquid level monitoring and control in storage tanks. With stainless steel contact parts and explosion-proof design, they ensure stable operation in high-temperature and high-pressure environments. Its passive contact signal output feature enables the switching between normally open and normally closed modes, making it suitable for automated scenarios such as pump-controlled liquid level maintenance

The side-mounted float level switch works by means of the float being lifted by the liquid buoyancy and swinging up or down to approximately 20 degrees from the horizontal plane. Under the lever action, the arm end swings accordingly, thereby driving the micro-switch inside the junction box to close or open. Its features include convenient usage, simple structure, safety and reliability, long working life, small size, high speed, durability, and the contact action life can reach 1 million times

Key Configurations

The float-based level switch is designed to be mounted on the side of a liquid storage tank and is used for detecting either over float (high) or dry run (low) detection for alarm, monitoring, and control applications.

The UKQ-41 is a simple apparatus and does not require power to operate. It provides a single actuation point and can be ordered with a custom stem/arm length with a variety of process connection fitting options. Its material is made of 316 stainless steel or SS304

Technical Specifications

(Can be Custom according to your requirent.)

Mouted	Side/top
Material	SS304/SS316
Output	STDP
Type	Does not require powe

Applications of High-Temperature Side-Mounted Float Level Switch

High-temperature boiler & steam equipment

Boiler water tanks, deaerators, steam condensate tanks. Control high/low water level interlock protection against dry burning.
Heat transfer oil heating systems

Thermal oil expansion tanks, high-temperature oil storage vessels. Alarm for insufficient or overflow heat-conducting oil.
Chemical high-temperature reactors

High-temperature reaction kettles, distillation towers, evaporation pots. Realize automatic feeding and liquid cutoff interlock.
Metallurgical & hot water circulation equipment

Smelting cooling water tanks, high-temperature circulating water buffer tanks. Overflow and low-level protection.
Food & pharmaceutical high-temperature process tanks

Sterilization tanks, high-temperature blending vessels. Sanitary high-temp liquid level automatic control.
Power station auxiliary tanks

High-temperature water tanks, chemical dosing tanks for power plant waste heat systems.

Core advantages matching the above scenarios

Withstand high-temperature medium up to 200~450℃; side-mounted structure fits tank side flanges, anti-corrosion float optional; output switch signal for pump auto start-stop, alarm and safety interlock.

Working Principle of High-Temperature Side-Mounted Float Level Switch

A magnetic float with high temperature resistance slides up and down along the side guide tube, following the liquid level.
Multiple built-in high-temperature reed switches are fixed inside the sealed guide rod at different height positions.
When the float’s magnet moves to the position of a reed switch, magnetic force closes the switch contact and outputs an on/off signal.
Different installation heights of reed switches correspond to high level alarm, low level alarm or pump automatic start-stop control.
The guide tube and float adopt special heat-resistant materials to isolate high-temperature medium and protect internal magnetic components from failure under high heat.

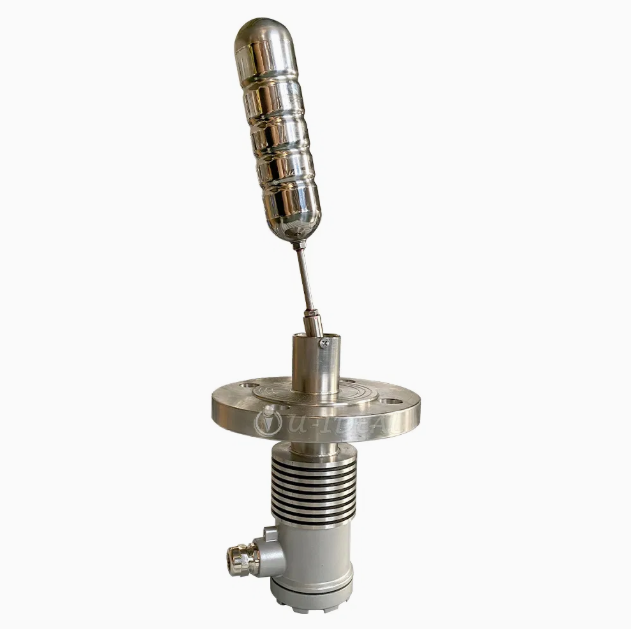

Side Liquid Float Switch for Tank Control Switch
