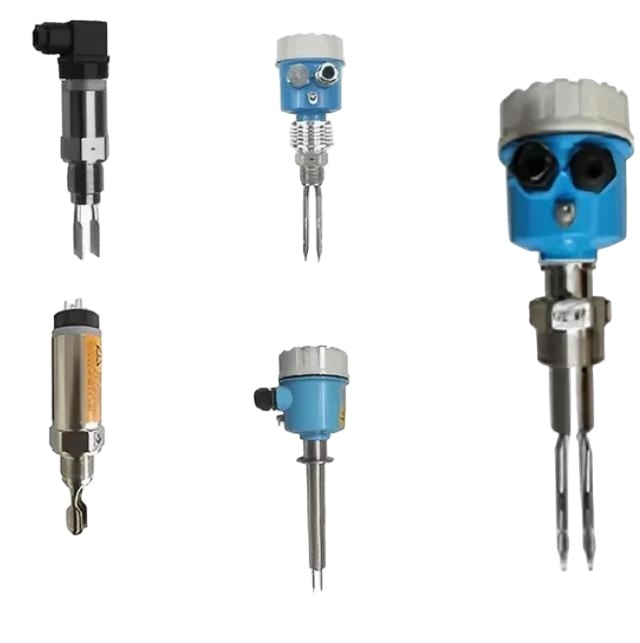

Vibrating Fork Level Switch Liquid Level Sensor

U-IDEAL level gauge > Level switch > Vibrating Fork Level Switch Liquid Level Sensor

Vibrating Fork Level Switch Liquid Level Sensor Product Description

Specification

Material	Aluminum Alloy / Stainless Steel
Process Temperature	-40℃ ~ +150℃; High Temperature Type: -50℃ ~ +250℃
Process Pressure	Vacuum ~ 64 Bar
Power Supply	24VDC / 220VAC Optional
Response Time	0.1s ~ 30s Adjustable
Process Connection	G1/2", G3/4", NPT1/2", Tri-clamp, Flange
Installation Way	Top mounting, Side mounting, Horizontal mounting

High sensitivity vibration resonance principle, stable level detection for liquid, powder and granular materials
No moving structure, no wear and tear, long service life, free daily maintenance
Not affected by foam, bubble, viscosity, dust and material turbulence, anti-interference ability strong
316L stainless steel wetted part, optional anti-corrosion alloy and PFA coating for harsh medium
Wide temperature and pressure range, adapt to high temperature high pressure industrial working conditions
Multiple output signal options, perfectly compatible with PLC and DCS control system

Tuning Fork Level Switch For Solid for solid, vibrating rod level switch Tuning Fork Switch vibrates to tuning fork by piezoelectric crystal and inherent frequency of tuning fork.It can monitor continuously to the change of frequency.
When the tuning fork switch is used for low alarm (or low position control), the medium in the vessel is discharged downward passing through the tuning fork.
When it is lower than the specific location and change the inherent frequency, this change is detected by electronic component, the output state is shifted; when it is used for high alarm (or high position control), the medium in the vessel go upward and contact with tuning fork which can shift the output state. changes, these changes are detected by the intelligent circuit, and converts it into a switch signal.
