Mechanical Float Board Level Indicator

U-IDEAL level gauge > Magnetic Float Level meter > Mechanical Float Board Level Indicator

Model NO. UHC-B
Output Signal Type:Switching Type
Production Process:Normal Wirewound
Feature:Corrosion Resistant
Material:CS, SS304, 316L, Steel Lined with PP, PTFE
IP Rating:IP65
Certification:ISO
Customized:Customized
Mounting:Side, Top, Side-Top Flange or Thread
Float Working Density:>0.5g/cm3
Measure Range:<30m
Norminal Pressure:ATM
Working Temperature:-40~450 C
Connection:Flange/Welding/Thread
Manufacture:Yes
Transport Package:Wooden Case or Carton
Specification:0~20m or custom
Trademark:U-ideal
Origin:Tianjin, China
HS Code:90261000
Production Capacity:5000

We are a strong manufacture ,main produce various level gauge and can be custom according to your requirement .please contact us if you are interesting

Mechanical Float Board Level Indicator and board level gauge/indicator For the measurement of level of fluids at various industrial applications level indicators are used. These devices are used to determine the level of liquid in tanks, drums. Pressure vessels etc.

For needs of different applications there are many level indicators to suit the purpose. In highly commercial industries normally, fluids are used in many forms. In absence of proper devices, it will be very difficult to find the quantity and level of fluid stored in a vessel/container etc. In many situations where the nature of fluid is dangerous or sometimes the place it is manually impossible to find the level in which the liquid is stored because the nature of the material, then the level indicators are of utmost importance.

Total depth of vessel	≤25m (Locally indicate can add two-wire remote transmitter)
Power supply	24VDC, output 4-20mA

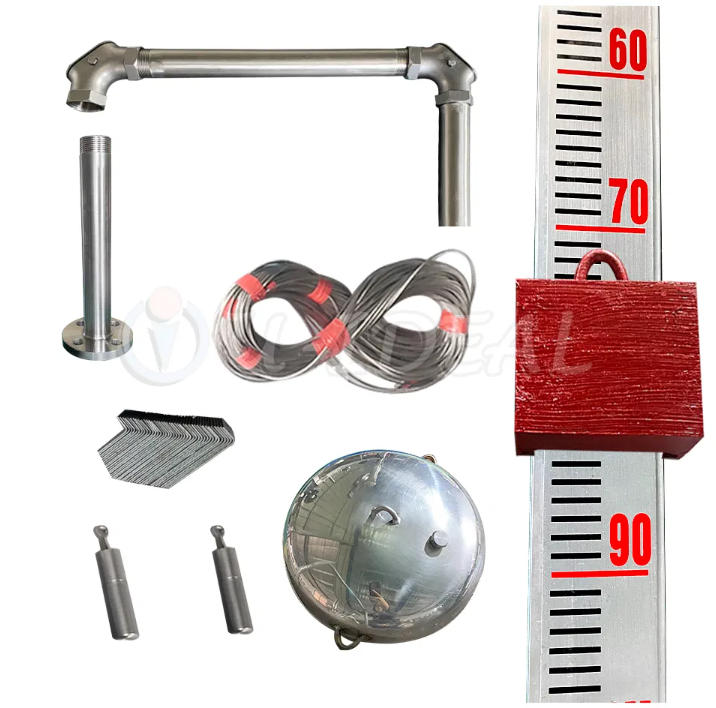

Top	double flange + guide pipe + elbow slide wheel(2 ball steel wire connected counterweigh buoyancy)
Bottom	double flange + chock
Top installed with flange	ANSI, DIN, JIS, HG, GB
Float Wire Rope	2.5mm diameter
Medium density	>0.4g/cm³
Medium temp.	-20℃~350 ℃
Float material	SUS304, SS316,PP
Flange and pipe and Guiding Rope	SUS304, SS316,PP

Technical Features:
1. Simple and robust design.
2. Pressure and gas proof separation of chamber and display.
3. Measuring and indication of the level of aggressive, combustible, toxic, hot agitated and contaminated.
4. Magnetic Follower display without external power.
5. Available for applications in all areas of industry through use of highly corrosion resistant materials.
6. Designs for a Temperature range from 100C to 450ºC.
7. Food industry design.
8. Interface measurement.

Product installation diagram

Mechanical Float Board Level Indicator (Mechanical Tank Water Level Indicator)

Working Principle

A stainless steel float inside the tank rises and falls following liquid level changes. The mechanical linkage transfers motion out of the tank, driving the indicator slider to move along the graduated scale, directly showing real-time liquid level height.

Core Features

No power supply required

Fully mechanical structure, works normally during power outages, ideal for unattended outdoor tanks, fuel depots and water storage facilities.
Simple & reliable structure

Few vulnerable parts, strong anti-electromagnetic interference, not affected by medium conductivity, dust or steam.
Intuitive on-site reading

Clear percentage scale, operators can check level data directly from a distance.
Wide medium adaptability

Fits water, diesel, heavy oil and other neutral liquid media; stainless steel float option for mildly corrosive fluids.
Easy installation & maintenance

Mount via tank top/side flange, convenient to inspect and replace parts without complex calibration.

Main Application Scenarios

Above-ground diesel, gasoline storage tanks
Industrial water tanks, fire water pools, circulating water buffer tanks
Small chemical medium storage vessels, heating system expansion tanks

Limitations

Only local display, no standard remote signal output by default
Not suitable for highly viscous, easily crystallized media that may block float movement
Measurement accuracy will drop under severe tank vibration conditions

Installation Steps

Mount the flange assembly firmly on the top or side reserved opening of the tank, ensure sealing to avoid leakage.
Lower the float body into the tank interior, connect and fix the external connecting pipe and rocker arm linkage structure.
Install the graduated scale vertically on the outer tank wall, adjust the indicator slider to align with the actual initial liquid level.
Check that the rocker linkage moves flexibly without jamming, verify the slider can follow float lifting and dropping smoothly.
Tighten all fasteners, do a liquid level rise/fall test to confirm scale reading matches real tank level.
