26Ghz High Quality Radar Level Indicator use for particle dust

26Ghz High Quality Radar Level Indicator use for particle dust

26Ghz High Quality Radar Level Indicator use for particle dust is a high-frequency level measurement instrument with a maximum measuring distance of up to 70 meters. The antenna is further optimized, and the new-type microprocessor can perform a higher rate of signal analysis and processing. This makes the instrument available for complex measurement conditions, such as reactors and solid silos.

The radar level transmitter emits a narrow microwave pulse through its downward transmission antenna. Microwave exposure to the medium surface is reflected back by the antenna system. The signal is then sent to the electronic circuit, which automatically converts it into level signals. Because the microwave propagation speed is instantaneous, the electromagnetic wave reaches the target and reflects back to the receiver almost immediately.

Feature:

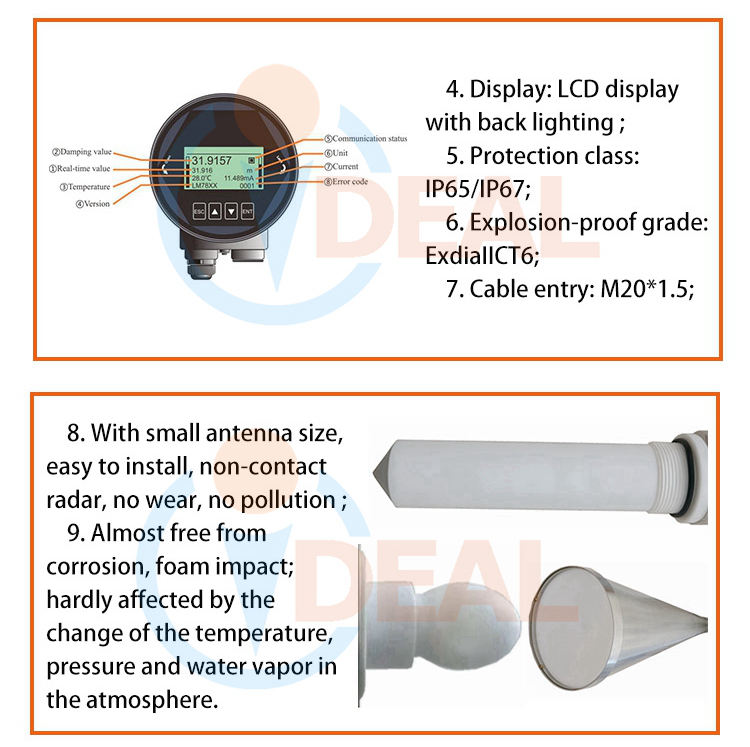

• Small antenna size, easy to install, Non-contact radar, no wear, no pollution.
• Almost no corrosion, bubble effect, and not significantly affected by water vapor in the atmosphere, temperature, and pressure changes.

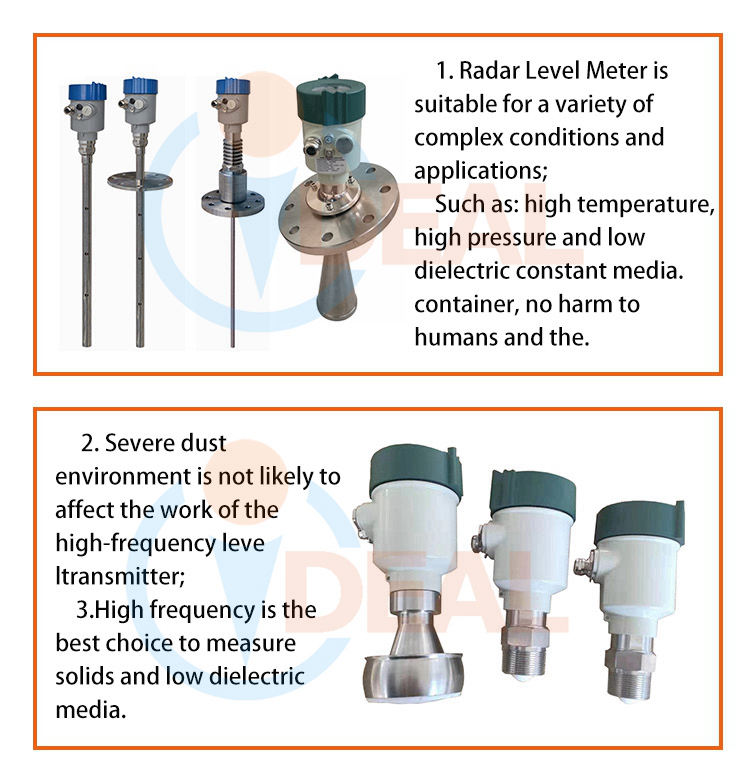

• Strong dust in the operation environment has little effect on the electromagnetic wave.
• A shorter wavelength allows for better reflection from solid surfaces.
• The beam angle is small, concentrating energy to enhance echo capability and avoid interference.
• A smaller measuring range yields good results for measurements.
• High signal-to-noise ratio provides better performance in fluctuating level states.
• High frequency makes it the best choice for measuring solids and low dielectric constants.

Typical applications of the intelligent Radar Level Indicator include:

1. Power plant: coal pile, raw coal bunker, fuel bunker, reservoir, waste gas purification tank, bin pump, ash storage, fuel tank, etc.
2. Oil field: crude oil or product oil storage tank, three-phase separator, settling tank, sewage tank and oil-water interface, drilling mud tank, etc.
3. Chemical engineering: crude distillation tower, raw material and intermediate bunker, reaction tank, ammonia tank, solid bunker, separator, etc.
4. Metallurgical: ore bin, ore crusher, raw material warehouse, auxiliary materials warehouse, blast furnace, alumina powder warehouse, electrolytic tank buffer tank, etc.
5. Mud: stone warehouse, raw material warehouse, cement warehouse, pulverized coal warehouse, slag storage warehouse, etc.
6. Water treatment: reservoir, sewage tank, water treatment tank, sedimentation tank, deep well, drinking water network, etc.
7. Paper making: raw material warehouse, storage tower, drying drum, chemical material storage warehouse, etc.
8. Others: quarry, food, pharmaceutical, environmental protection, shipbuilding and other industries.

Model	UI-RD
Application	solid material, strong dust, crystallizing, dew environment
Measure range	70m
Connection	Screw, Flange
Medium Temperature	-40～250ºC
Process pressure	-0.1～4MPa
Accuracy	±3mm
Frequency	26GHz
Explosion-proof class	ExibⅡC T6 Gb
Protection class	IP67
signal output	4-20mA/HART(2-wire / 4-wire) RS485/Modbus
