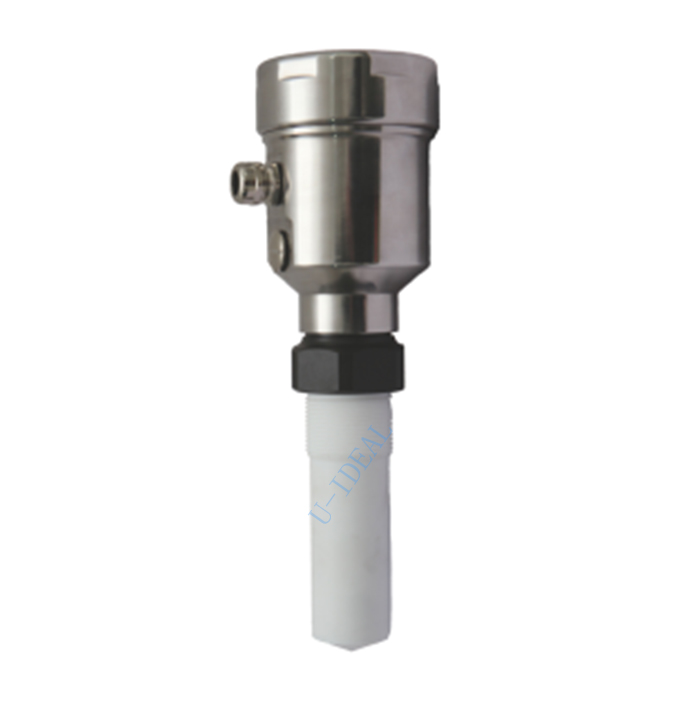

All kinds of strong corrosive liquids radar level sensor

All kinds of strong corrosive liquids radar level sensor principle

The radar level meter antenna emits extremely narrow microwave pulses that travel diffuse space at the speed of light.When it encounters the surface of the medium under test, some of its energy is reflected back and received by the same antenna.The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the medium under test.Because electromagnetic waves travel at very high speeds, it is difficult to determine the time interval between the emitted pulse and the received pulse (on the nanosecond scale).The 26G series radar object level meter USES a special correlation resolution technology to accurately identify the time interval between the transmitting pulse and the receiving pulse, thus further calculating the distance from the antenna to the surface of the medium under test.

Characteristics of high frequency radar level gauge:

The radar level gauge has a transmission frequency of up to 26GHZ and thus has a:
The beam Angle is small, the energy is concentrated, has the stronger anti-interference ability, has greatly improved the measurement accuracy and the reliability;
The size of the antenna is small, so it is easy to install and install the dust cover and other antenna protection device;
The blind area of measurement is smaller, and good results can be obtained for small tank measurement.
The wavelength is shorter, which is more suitable for material level measurement of small particles.
Using advanced microprocessors and unique EchoDiscovery technology,the radar object level meter can be used in various complicated working conditions.
The radar object level meter works in pulse mode, emitting very low power,can be installed in various metal, non-metal containers, no harm to the human body and the environment.

Radar level gauge technical parameters:

Features: temperature resistance, pressure resistance, resistance to slightly corrosive liquid. Application: widely used in various acid,For installation and use on the small tank, the smaller beam Angle than 6G determines the smaller actual measurement blind area by adding the appropriate installation short tube.
Maximum range: 30m
Measurement accuracy: ±10mm
Antenna structure: fully sealed PTFE material
Process temperature: -40 ~ 250 °C
Process pressure: 0.1 ~ 4MPa
Process connection: thread or flange
Frequency range: 26GHz
Signal output: 4-20ma /HART, two-wire/four-wire /RS485/Modbus/433M radio frequency and GPRS wireless network
Power supply: two-wire/four-wire
Explosion-proof grade: Exia II CT6 Ga
Protection class: IP67

Application of high frequency radar level gauge:

Power plant: fuel bunker, reservoir, waste gas purification tank, bin pump, tank, etc.
Oil field: crude oil or product oil storage tank, three-phase separator, settling tank, sewage tank and oil-water interface, drilling mud tank, etc.
Chemical engineering: sulfuric acid, nitric acid, chemical corrosion level, crude oil distillation tower, raw materials and intermediate silo, reaction tank, ammonia tank, separator, etc.;
Water treatment: reservoir, sewage tank, water treatment tank, sedimentation tank, deep well, drinking water network, etc.
Others: food, pharmaceutical, environmental protection, shipbuilding and other industries.
