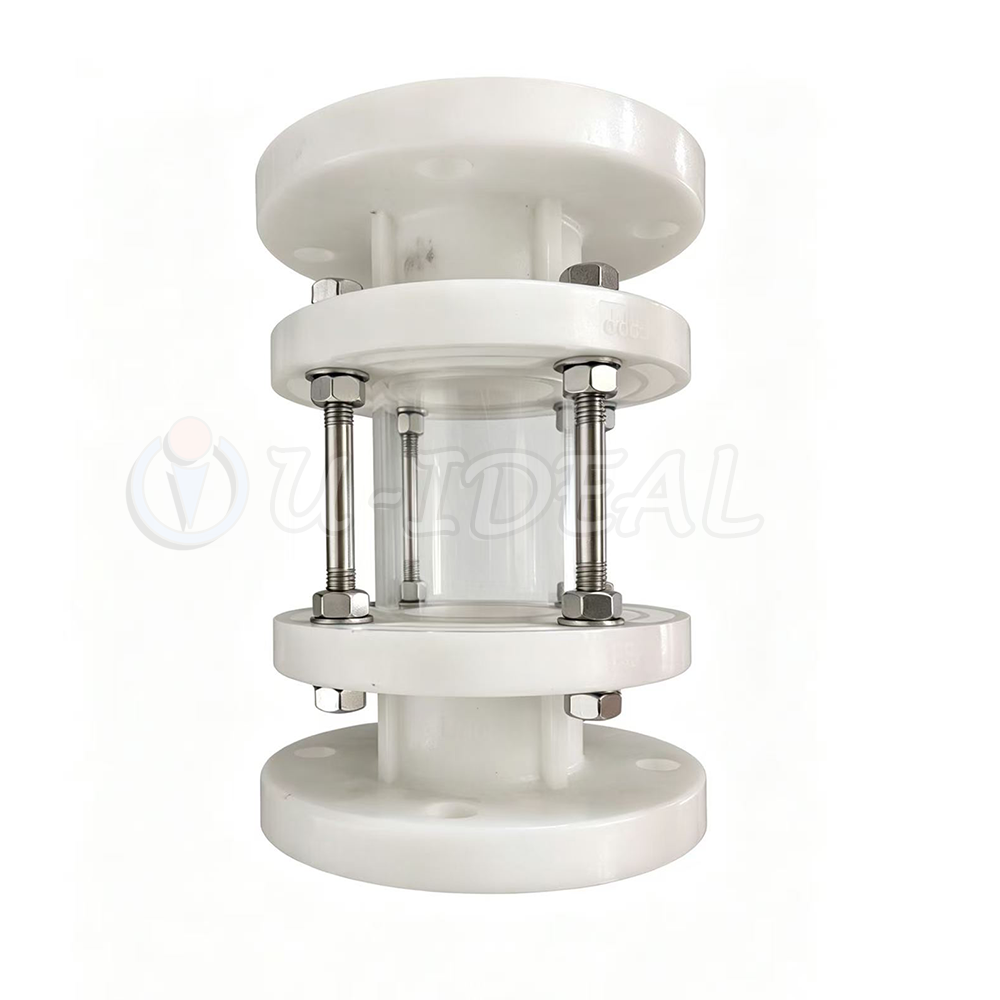

PTFE Sight Glass Tube Low Pressure Inline Tri-clamp Weld Flange Thread for Industrial Use Liquid Level

Model NO.：Sight Flow Indicator
Measuring Media：Liquid
Material：carbon steel / stainless steel / PP / PVDF / PVC / PTFE
Protective sleeve Material:AISI 304/316
working pressure: 5 bar to 10 bar according to sight glass size
Working Temperature: -10°—120 °C(VMQ)
Availably size: DN15-DN150/ 0.5"-6"
Availably connection: Clamp / weld / thread
Origion：Hebei
Package：Wooden Case or Carton
Trademark：U-ideal
Specification：CE, ROHS, SGS, GMP
Origin：Tianjin, China

Highlights at a glance

Superior Anti-Corrosion Property: Body made of high purity PVDF material, excellent resistance against strong acid, strong alkali, organic solvent and corrosive chemical liquid, ideal for corrosive chemical working conditions.
Dual Optional View Tube: Equipped with transparent Borosilicate 3.3 glass tube or PC polycarbonate tube; borosilicate for high temp working, PC for impact-resistant occasion.
Standard Flange Connection: Full flange end design complying with HG/ANSI/DIN standard flange size, easy to install on industrial pipeline, stable connection without leakage.
Stainless Steel Fastener: SS304 hex bolt & nut for clamping assembly, uniform compression on sealing gasket, outstanding sealing performance under rated pressure. Wide
Application Range: Suitable for chemical industry, electroplating, environmental wastewater treatment, pharmaceutical, pesticide corrosive fluid pipeline flow inspection.
Customizable Specification: Custom available for nominal diameter, tube length, flange standard and gasket material per customer's pipeline parameters

Scope of application:
1. chemical industry, petrochemical production of weak corrosive materials, such as: water, ammonia, oil, hydrocarbons, etc.
2. Corrosive materials in chemical production, such as: caustic soda, concentrated dilute sulfuric acid, carbonic acid, acetic acid, ester acid, etc.
3. Cryogenic materials in refrigeration, such as liquid ammonia, liquid oxygen and various refrigerants.
4. light industrial food, pharmaceutical production of health requirements of materials, such as: beer, beverages, dairy products, medical supplies, etc.
