Grade:Industrial
Certification:ISO
Customized support:OEM
Place of Origin:Hebei, China
Brand Name:Hebei Xukang Meter Manufacturing Co.,Ltd
Model Number:XK-T
Digital Output:4-20mA,RS485,Modbus
Shape:All in one
Measuring Range:2-40meter
blind:<0.25-2 m,based on MR
min display:1mm
Accuracy:0.25%F.S
temperature compensation:Auto temperature compensation
Display:LED,LCD,OLED
Power supply:220VAC/DC12-28V
Power:<1.5W

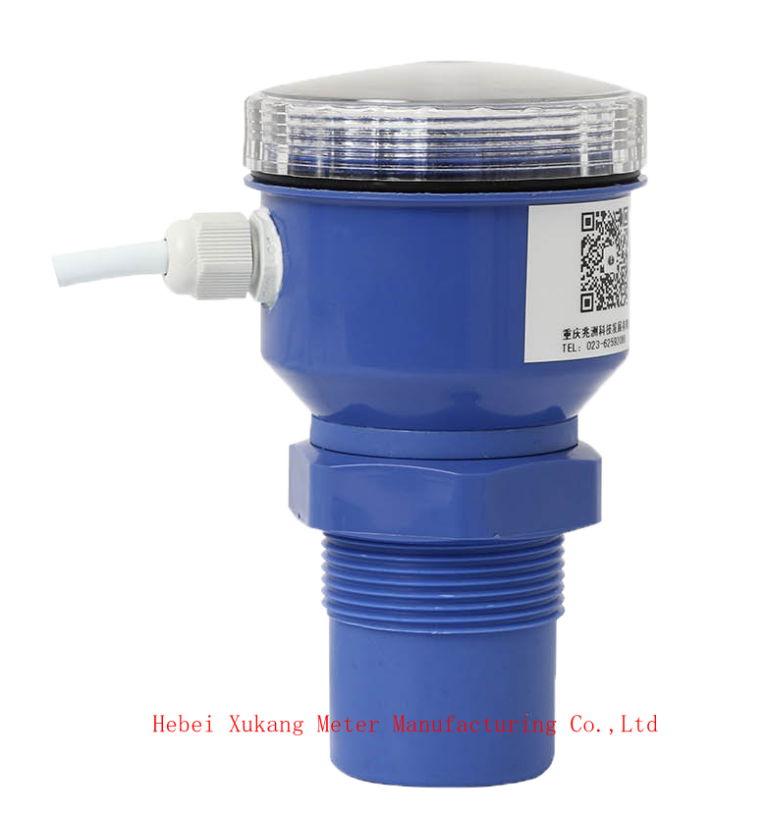

XK-A ultrasonic level meter is the newest kind product. It draws many advantages from home and abroad. It realizes high digital, communication between machine and human. The CPU applies import industry monolithic integrated circuit, digital temperature compensation and wide voltage input. You can select analog, switch or RS485 serial signal output. Owning the advantage that there is no need to contact the measured meter, our product could supply more precise and longer work life.
1. Water and sewage treatment: pump room, collecting well, biochemical reaction tank, sedimentation tank, etc.
2. Power and mine: mortar pool, coal slurry pool, butter storage tank, pile material field or partial mobile device control, etc.
3. Food industry: winery, granary, food materials and tank, etc.
4. Use of control system.
The voltage adaption range is wide and can work within the dc voltage of 12-28v.
Backup and restore Settings.
It can measure various physical quantity functions.
It can adjust the output function of analog quantity arbitrarily.
It has full range starting point and end point arbitrary setting function.
It has the value added value/difference range selection, which can measure the distance and the location.
It has 0-100 pulse intensity, which can be set according to the working condition.
The OLED Chinese and English menus are lit with light.
The function of fixed interference filtering can be set manually.
It can measure the position, liquid level, volume, weight and so on.
The analog output can be adjusted arbitrarily.
It has the function of digital filtering and echo recognition.
Support custom speed of sound (special material measurement)
It supports custom serial port data format.
It supports custom mathematical function operations.
It supports three - and four-wire system.
Full scale:2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m, 35m, 40m.
Max measure error: 0.25% FS
Power: DC 12-28V Power consumption: <1.5W
Frequency: 20 KHz~2000 KHz
Output signal: 4~20mA (other output signal is available)
Max load impedance: 300Ω
Display panel: 4 figures 8 segments LED (LCD,OLED is available)
Material: aluminum for shell, PP for transducer
Fix model: out straight screw M48×1.5
Protection degree: IP65
Humidity: 0 to 95%
Ambient temperature:-10℃~60℃
Ambient pressure: normal condition
