Grade:Industrial
Certification:ISO
Customized support:OEM
Place of Origin:Hebei, China
Brand Name:Hebei Xukang Meter Manufacturing Co.,Ltd
Model Number:XK-T
Digital Output:4-20mA,RS485,Modbus
Shape:split type
Measuring Range:2-40meter
blind:<0.25-2 m,based on MR
min display:1mm
Accuracy:0.25%F.S
temperature compensation:Auto temperature compensation
Display:LED,LCD,OLED
Power supply:220VAC/DC12-28V
Power:<1.5W

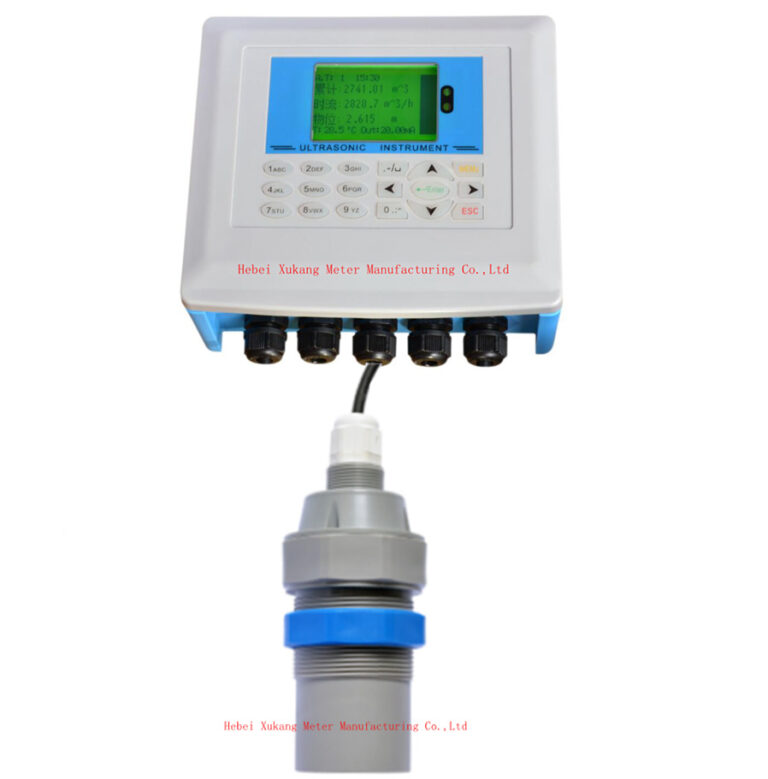

XK - F/FP split type ultrasonic (liquid) apparatus, is our product production experience for many years, learned a variety of advantages of similar products, and to develop a convenient and applicable split type ultrasonic level meter, solved the all-in-one circuit in harsh environment prone to failure of the trouble back at home.It has the advantages of accurate measurement, reliable work and easy appearance.With the large-scale integrated circuit, the chip rate reaches 90%, which guarantees the long-term reliability of the product.At the same time, the power consumption has been reduced to extremely low. It is easy to use the large screen to display the whole English menu, support SD card data collection and serial port data download, and can record ten interference echo points.
Backup and restore setup parameters.
It can measure the position, liquid level, volume, weight and so on. The analog output can be adjusted arbitrarily.
It has the function of digital filtering and echo recognition. The fixed interference filtering function can be set manually. Supports custom mathematical function operations. Support for custom sound speed.
1.Water and sewage treatment: pump room, collecting well, biochemical
reaction tank, sedimentation tank, etc. 2.Electric power, mine: mortar pool, coal slurry pool, butter storage tank, storage yard or partial mobile device control, etc. 3.Food industry: winery, granary, food materials filling tank, etc. 4.Use of control system. Specification:
Full scale: 2m,5m,8m,10m,12m,15m,20m,25m,30m,35m,40m
Max measure error: 0.3%×full scale
Blind area:0.3-2m(Based on FS)
Display resolution: 1mm
Emission angle : 12° Power: DC 12-24V or 220VAC
Power consumption: <5W
Frequency: 20 KHz~2000 KHz
Output signal: 4~20mA (other output signal is available 0~20mA,0~5V,0~
10V)
Communication:RS485,HART,GPRS,Mini SD Card,USB(Based on select)
Max load impedance: >300Ω
Display panel: 4 figures LED (LCD/OLED/TFT is available)
Material: aluminum/ABS for shell,ABS/PA for transducer
Fix model: out straight screw M60×2
Protection degree: IP65 (Higher is available)
Humidity: 0 to 95%
Automatic temperature compensation
Ambient temperature/ pressure: normal condition
explosive-proof grade:EXiaII BT4Gb(Or custom-made)
