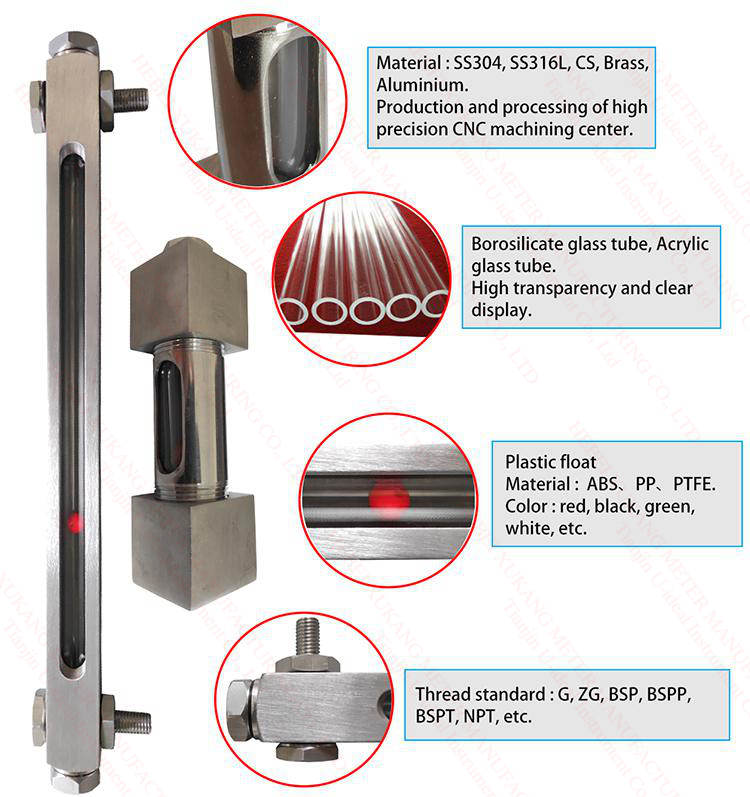

G607 Aluminium Oil Level Gauge
Quick Details
Place of Origin:Hebei, China
Brand Name:Hebeixukang
Model Number:XK
Measurement range:3″~12″ (Customizable)
Working pressure:0.6MPa, 1.0MPa
Working temperature:-10℃ ~ +180℃
Interface threads:1/4″、3/8″、1/2″、3/4″ (male pipe thread)
Main material:Aluminum、Brass、Steel、Stainless Steel
The G607 Aluminium Oil Level Gauge which supplied from our company are essential accessories of oil tank, oil cellar, cooling case and gear box. They can indicate both liquid level and liquid temperature. These type oil level gauges are an attractive, new and unique type, and can indicate liquid level and temperature clearly. Good assembly performances; fixed installation, crack control, shockproof and leakage proof and their advantages. These type oil level gauges are designed to different kinds’ specifications according the oil tank volume. We assure the products quality for one year, and welcome all new and old customer to try these type products.
| C-C | 3″~12″ (Customizable) |
| BODY MATERIAL | Aluminum、Brass、Steel、Stainless Steel |
| SEAL MATERIAL | Buna N、Butyl、Fluororubber、Ethylene propylene、Silicone |
| THREAD SIZE | 1/4″、3/8″、1/2″、3/4″ (male pipe thread) |
| THREAD STANDARD | NPT、BSP、BSPT、G、ZG、M |
Applications of Oil Liquid Level Indicator Sight Glass Gauge Glass Tube Level Gauge
1. General Machinery Lubricating Oil Tanks
Gearboxes, hydraulic stations, rolling mill thin oil stations, air compressor oil tanks. Directly observe lubricant volume to prevent oil shortage and equipment abrasion. Brass valve small glass tube oil gauges are widely used for low-cost routine monitoring.
2. Generator & Diesel Engine Fuel Tanks
Diesel generator sets, agricultural machinery fuel tanks, vehicle auxiliary oil boxes. Check residual fuel visually; simple structure, easy on-site inspection without power supply.
3. Boiler & Thermal Oil Heating Systems
Heat conduction oil expansion tanks, fuel oil storage auxiliary tanks. Monitor oil level to avoid dry burning and oil overflow faults.
4. Light Industry & Factory Central Oil Depots
Small diesel, lubricating oil storage barrels and transfer tanks. Low pressure normal temperature oil medium, economical glass tube oil gauges meet daily patrol observation demands.
5. Hydraulic Equipment & Injection Molding Machines
Injection molding, stamping machine hydraulic oil tanks. Quickly judge oil shortage or oil leakage faults during equipment maintenance.
6. Construction & Agricultural Machinery Equipment
Excavator auxiliary oil tanks, irrigation diesel power machine oil boxes, breeding heating fuel tanks. Outdoor low-pressure working condition, easy to replace broken glass tubes on site.
Core Matching Advantages
- Fully mechanical, no electricity, reliable for power-off equipment.
- Low price, simple installation, spare parts cheap and easy to obtain.
- Clear transparent glass, direct real-time observation of oil height and oil quality.
- Compact size, fits narrow installation space on small oil tanks.
Limitations
Only for low-pressure normal-temperature light oil media; not applicable for high-temperature, high-pressure or corrosive oil.
Glossary of Glass Tube Oil Level Gauge
Complete Products
Glass tube oil level gauge,Glass tube oil sight,Tube type level indicator,Direct reading oil sight gauge,Side-mount oil level gauge
Key Components
Sight glass tube / Glass level tube,Quartz glass tube,Brass cock valve,Upper & lower stop cock,Drain cock,Sealing gasket,Self-sealing steel ball,Flange connector,Protective cover
Specification & Working Condition Terms
Low pressure type,Normal temperature,Hydraulic oil tank,Gearbox,Lubricating oil,Diesel oil / Fuel oil, Center distance,Nominal pressure (PN),Nominal diameter (DN)
Functional Descriptions
Local direct reading;Leak-proof;Anti-break safety design; Drainable; Visible oil level; Vertical installation
Common Failures & Solutions for Glass Tube Oil Level Gauge
- Oil leakage at valve jointsCause: Aging, cracked or uneven gaskets; loose bolts/cocks.Solution: Replace intact gaskets; tighten fasteners evenly diagonally.
- Blurred, foggy glass tube, hard to read oil levelCause: Oil dirt, carbon deposit and scale attached on tube inner wall.Solution: Close cocks, drain oil, remove and clean the glass tube thoroughly.
- Glass tube brokenCause: Impact, uneven bolt tightening, thermal shock.Solution: Shut off valves to isolate the gauge; replace new glass tube and install protective cover.
- Cock valve stuck, cannot open/close smoothlyCause: Oil sludge, impurities stuck inside valve cavity.Solution: Discharge residual oil, rinse valve body; replace the cock if severely jammed.
- False oil level, slow liquid level responseCause: Air trapped inside the glass tube; blocked connecting pipeline.Solution: Open drain cock to exhaust air; clear blockages in connecting pipes.
- Self-sealing steel ball fails to block oil after tube breakageCause: Ball stuck by dirt, can not slide freely.Solution: Disassemble and clean the cock, ensure steel ball moves flexibly.
