Quick opening type glass plate level gauge
Quick Details
Place of Origin:Hebei, China
Brand Name:Hebeixukang
Model Number:XK-RFL-40C
Measurement range:330~2000mm
Working temperature:≤200℃
Work pressure:≤4MPa
Body material:high quality carbon steel
Transparent color:natural color
Flange connections:DN15, DN20, DN25
Quick opening type glass plate level gauge reflex glass level gauges working principle is based on the light refraction and reflection laws.
Reflex glass level gauges use glasses having the face fitted towards the chamber shaped to have prismatic grooves with section angle of 90°. When in operation, the chamber is filled with liquid in the lower zone and gases or vapors in the upper zone; the liquid level is distinguished by different brightness of the glass in the liquid and in the gas/vapor zone. The reflex level gauges do not need a specific illumination: the day environmental light is enough. Only during the night an artificial light must be provided.

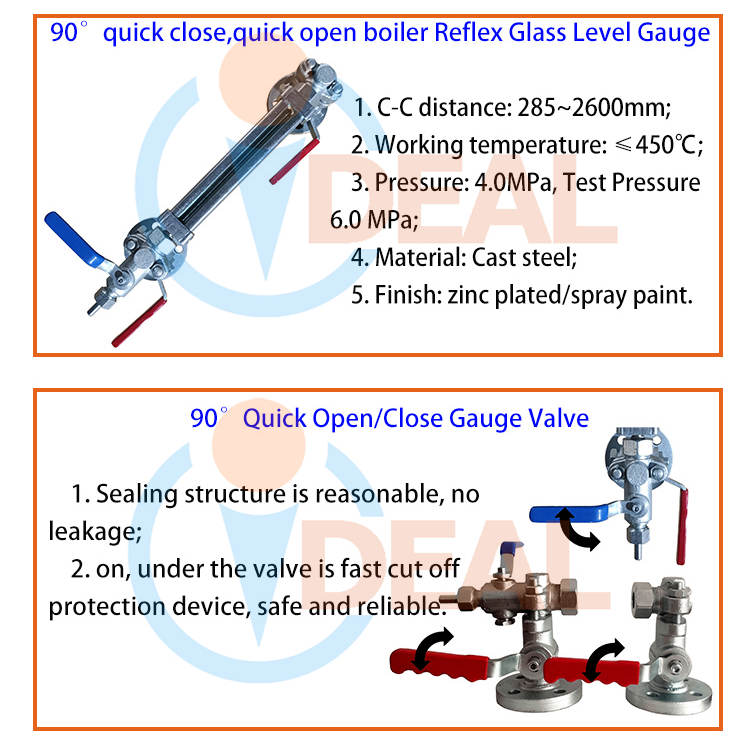

The 90 degree Quick open/close type glass plate level gauge is composed of two quick opening valves, intermediate indicating device, etc. The handle is rotated 90 degrees to quickly control the opening and closing of the valve.open the valve, and the medium flows into the middle indicating device through the valve, so that the liquid level can be clearly reflected through the glass plate within the effective transmittance range of the glass plate level gauge.
Applications
Reflex glass plate level gauges can be used in most of the cases and offer great advantages in terms of: low initial cost, low operating cost, easy level reading.
Features:
1. They do not need electrical power to operate. This can be a great advantage in the case of a power outage.
2. Simple to install – no calibration is necessary.
3. Can be used as a reference to check, or calibrate, other level technologies.
4. Pressure rating from vacuum to 4Mpa.
5. Temperature rating from -20℃ to 450℃
7. Not affected by the chemical or electrical properties of the process liquid.
8. Specific gravity, dielectric, conductivity, surface turbulence, vapor, foam, etc. no longer needs to be considered.
| Model | TBS-F | TBS-A | TBS-HR | TBS-HT | RFL-40C |
| Type | Reflex type | Transparent type | High pressure reflex type | High pressure Transparent type | 90 degree Quick open/close type |
| C-C(mm) | 300-3600 | 285-2590 | |||
| Visible Length(mm) | 95-3360 | 141-2433 | |||
| Level Gauge Material | CS、SS304、SS316L、Ti、etc | Cast steel | |||

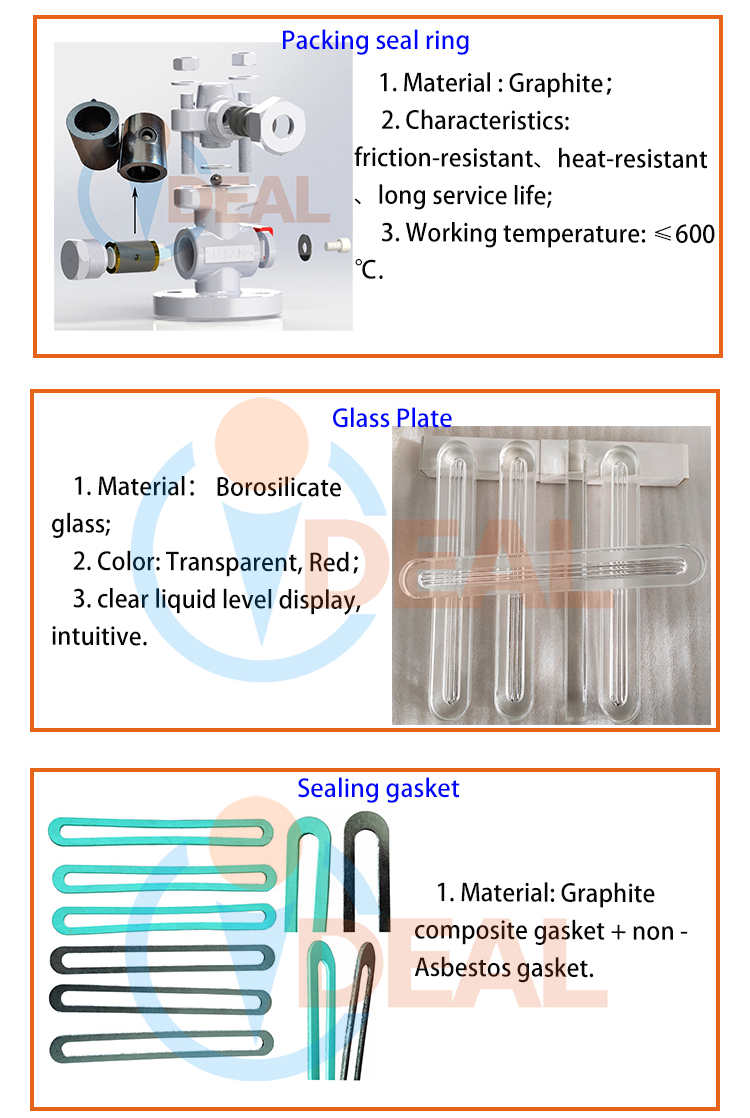

| Glass Material | Borosilicate; Alumina-silicate | ||||
| Gasket Type | Graphite composite gasket; non-Asbestos gasket; Mica seal components | ||||
| Working temperature℃ | ≤450℃ | ||||
| Working pressureBar | 40 (Groove glass)100 (Plate glass) | 100 (Plate glass) | 40 (Groove glass)160 (Plate glass) | 160 (Plate glass) | 40 (Groove glass) |
