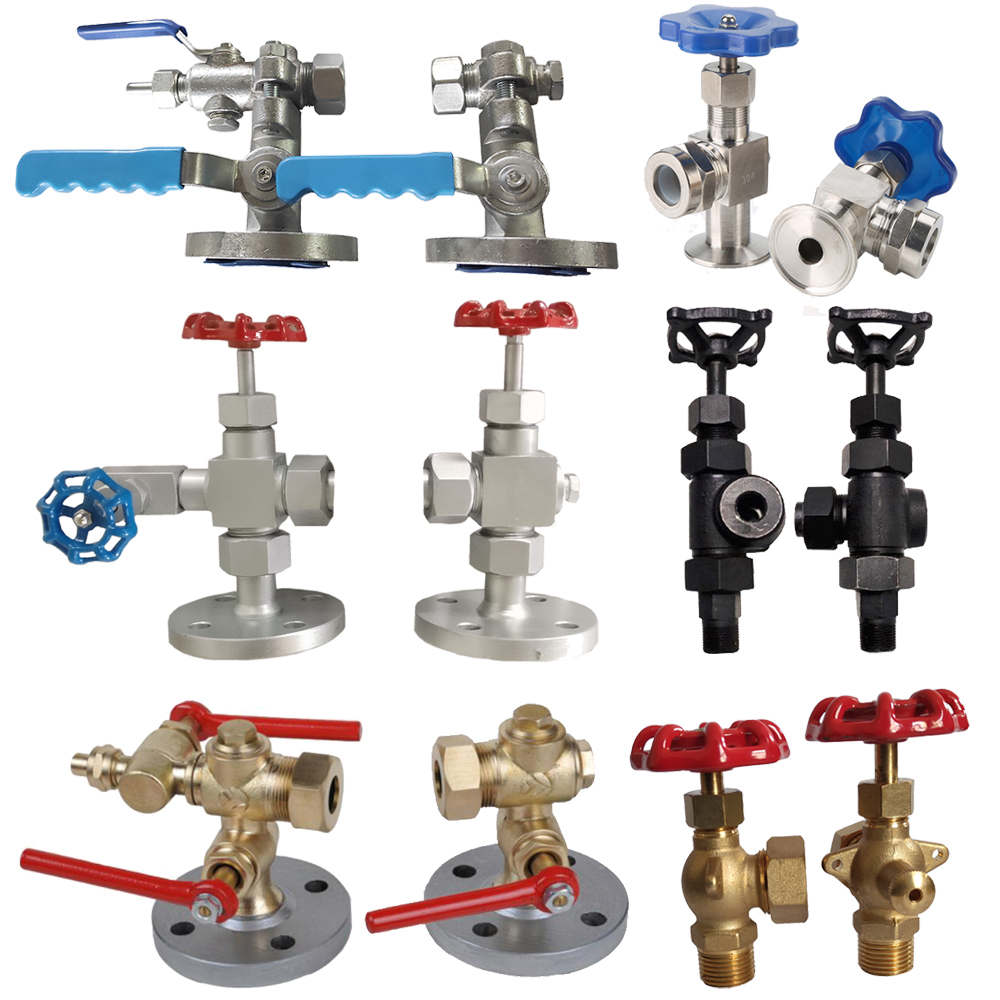

sight glass level gauge valves for boilers

Sight glass level gauge valves -gauge cock valve are used to isolate a level gage from its host process for maintenance, inspection, and other ancillary operations. Water Gauge valve cocks are used for water level gauge (reflex glass level gauge, transparent glass level gauge, glass tubular level gauge) . is type of needle valve, have isolating ball inside, once the glass broken, the ball will block the water flow out.

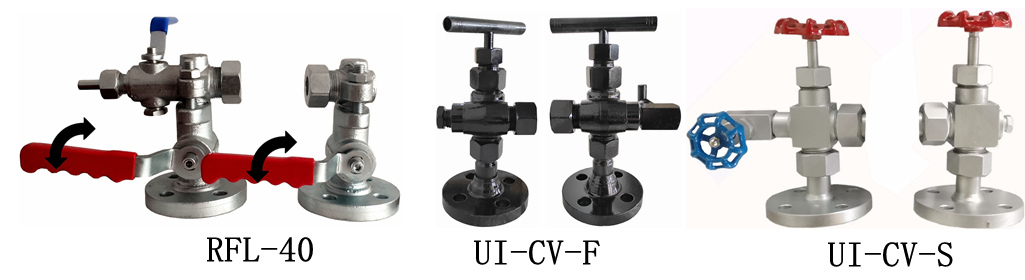

Model	UI-CV-F	UI-CV-S	RFL-40

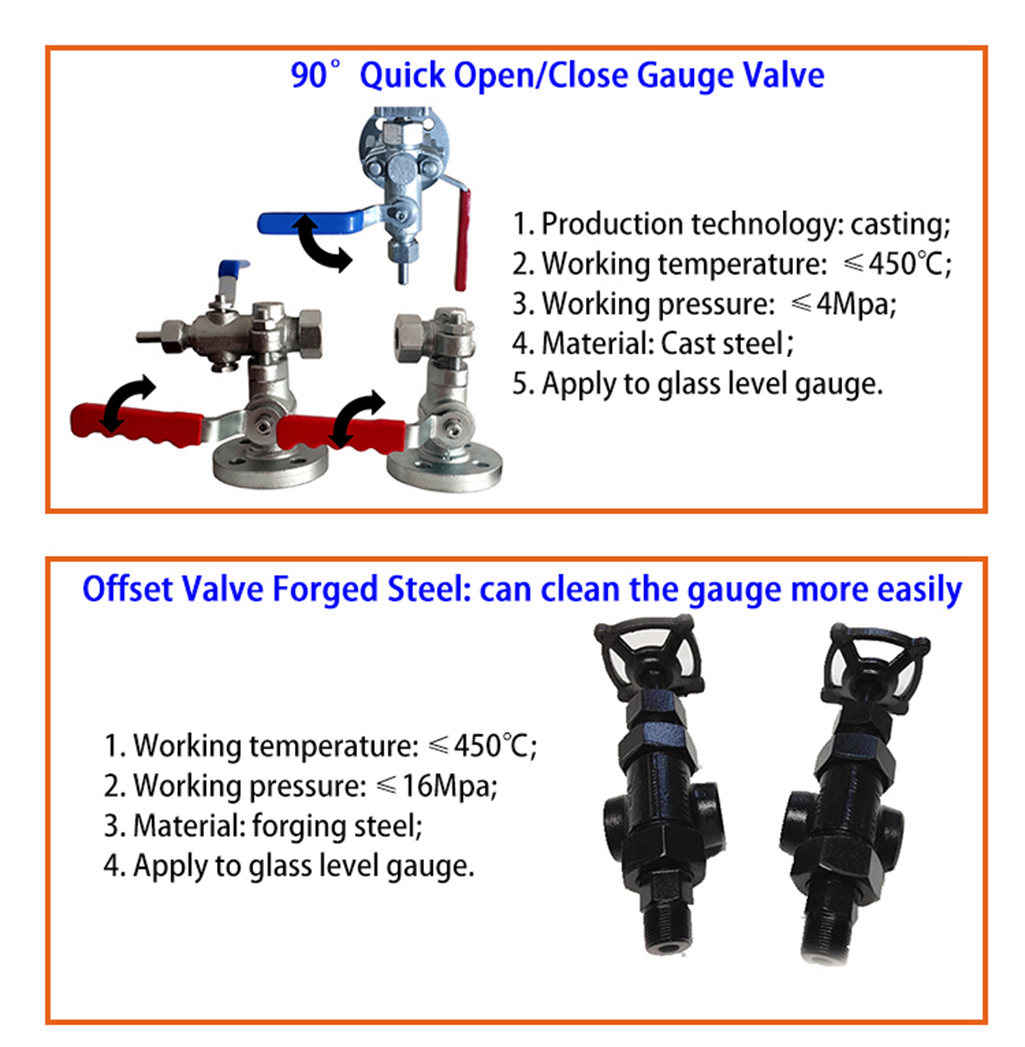

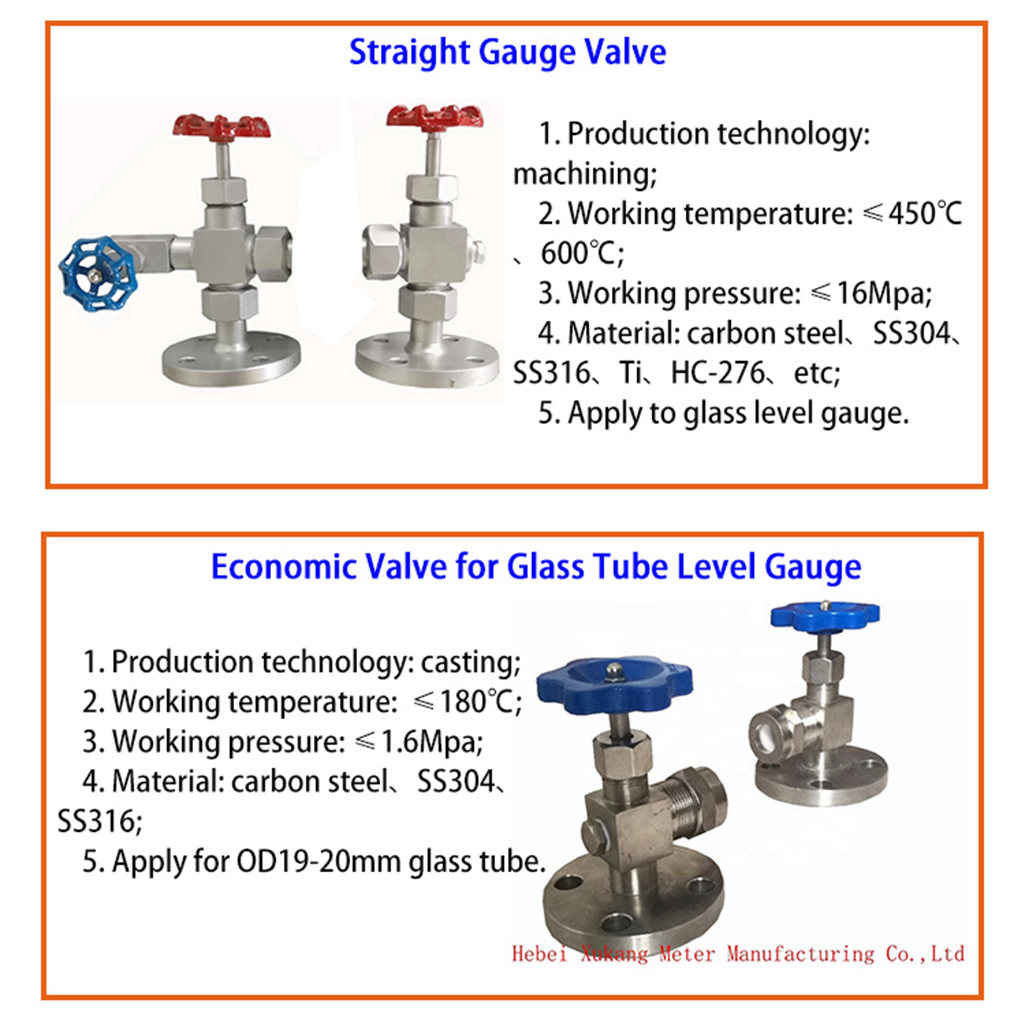

Type	Offset Valve Forged Steel	Straight Gauge Valve	90 Quick Open / Close Gauge Valve
Valve body Material	Forging steel	CS、SS304、SS316L、Ti、etc	Cast steel
Valve rod Material	2Cr13 / SS316L
Sealing Material	Graphite
Working temperature (℃)	≤450℃
Working pressure (Bar)	40 (Groove glass) 160 (Plate glass)	40 (Groove glass) 100 (Plate glass)	40 (Groove glass)
Connection mode	Flange; Thread; welding		Flange
Connection standard	ANSI、DIN、GB、JIS; NPT、BSPT、G、ZG;		ANSI、DIN、GB、JIS;
Apply to	TBS-F / TBS-A / TBS-HR / TBS-HT / RFL-40C		TBS-F / TBS-A / RFL-40C

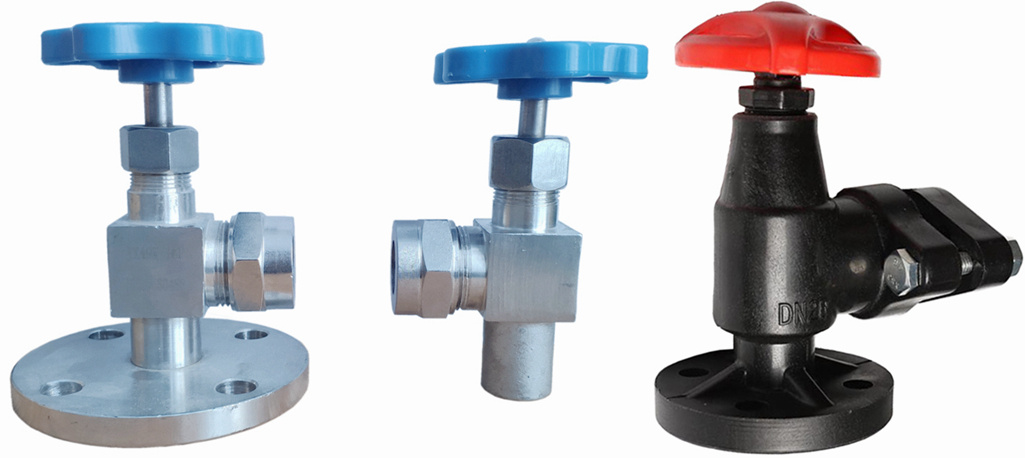

Material	Carbon steel, SS304, SS316, PP, PVC
Seal Material	Rubber、Graphite、PTFE
Working temperature	-20~90℃(Rubber Seal)；-20~180℃(PTFE Seal)；-20~500℃(Graphite Seal)
Working pressure	≤1.6Mpa（Max 16Mpa）
Process connection	Flange/Clamp/threaded/welded
